Why an articulated arm, not a straight ram
Athos uses a jointed, articulated arm rather than a single straight ram. That matters on gates with wide, deep, or oddly positioned pillars, where a straight ram cannot reach far enough around the corner to open the leaf fully. The lever action of an articulated arm folds around that kind of obstruction in a way a rigid ram simply cannot.
If your pillar is unusually wide, set back from the gate line, or has anything built onto it that a straight arm would collide with, this is the mechanism built for that situation, not a straight ram motor pushed to cope with it.
A25 and A40 rate in opposite directions, read this before choosing
It looks like A40 should simply be the bigger motor. It is not.
| Model | Max leaf weight | Max leaf length |
|---|---|---|
| A25 | 700 kg | 2.5 m |
| A40 | 400 kg | 4 m |
A25 carries more weight over a shorter leaf. A40 reaches a longer leaf but only a lighter one. Choose by whichever figure your actual gate hits first, not by which model number sounds bigger.
Left or right handed, and why it is not optional
BFT sells this motor in AL and AR versions, matching which direction your gate leaf swings. Fitting the wrong handing means the arm geometry works against the gate rather than with it. Tell us which way your gate opens before ordering, or send a photograph and we will confirm.
Specifications
| Model | BFT Athos AC A25 |
|---|---|
| Max leaf weight | 700 kg |
| Max leaf length | 2.5 metres |
| Power | 230V, 280W |
| Rod stroke | 300 mm |
| Opening angle | 110° |
| Cycle time, 90° | 14 seconds |
| Duty cycle | Semi intensive |
| IP rating | IP54, genuine dust and splash protection |
| Control unit | ALENA SW2, for one or two operators |
| Country of origin | Italy |
IP54 is worth pointing out directly, since our Phobos AC A25 carries only IPX4, with no published dust rating at all. Athos gives a real, confirmed figure covering both, which suits an exposed Omani installation better.

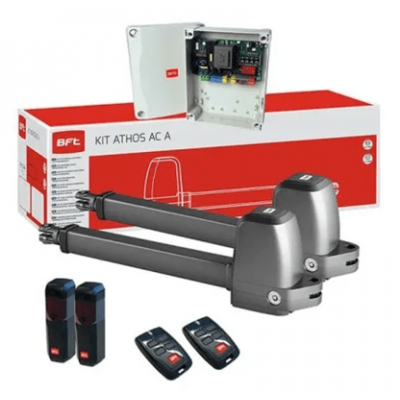

What is included
- Two BFT Athos AC A25 motors
- One ALENA SW2 control panel
- One pair of photocells, 30 metre range
- Flashing light with antenna
- Two remote controls, 50/100 metre range
- Push button
- Two fixing plates
Quoted separately: installation and additional remotes. See remotes and accessories.
Installing an articulated arm swing gate motor in Oman
Our engineer confirms your pillar shape, gate weight, and handing before fitting, mounts both arms, wires the shared control panel, photocells and blinker, then sets the opening angle and force for your specific gate.
Swing gate motor installation for villas and wide pillar gates across every governorate
We install in Muscat, Sohar, Nizwa, Salalah, Sur, Duqm and every other governorate. See our swing gate motors, the BFT range, or our installation service.
Common questions
Why choose Athos over Phobos?
Athos uses a jointed arm that reaches around wide or awkward pillars a straight ram cannot. It also carries a genuine IP54 dust rating, where Phobos only confirms splash protection.
Should I buy the A25 or the A40?
A25 carries more weight over a shorter leaf, 700 kg at 2.5 metres. A40 reaches further but only 400 kg. Match whichever figure your actual gate hits first.
Do I need the left or right handed version?
Yes, this is not optional. Tell us which way your gate leaf swings, or send a photograph, and we will confirm AL or AR before dispatch.
What is the price?
OMR 190.000 for the complete pair kit.
Order the BFT Athos AC A25 in Oman
Send your gate weight, leaf length, pillar shape and swing direction on WhatsApp to +968 75219236, or call the shop on +968 75219236. We are open 9 am to 9 pm every day.
