The Life Optimo OP5 UNI is an Italian 230V swing gate motor kit for double leaf gates. It takes leaves up to 5 metres long. Many seller pages call it a 900 kg motor. Life’s installation manual does not. It ties the weight to the leaf length, and a 5 metre leaf is rated for far less. We stock the complete kit in Al Khuwair for OMR 232.000 and fit it across Oman.
Life Optimo OP5 UNI weight depends on leaf length
| Gate leaf length | Life manual weight limit |
|---|---|
| Up to 3 metres | 500 kg |
| Up to 4 metres | 400 kg |
| Up to 5 metres | 300 kg |
A longer leaf puts more load on the motor, so the allowed weight falls. Some listings print 900 kg and 5 metres together. We have not seen a Life document that rates a 5 metre leaf at 900 kg. So we size by leaf length and confirm the rating plate before we dispatch. Send us your leaf length and weight, and we will tell you if the OP5 suits.
Life Optimo OP5 UNI is not the same as the OP5
| OP5 UNI, this kit | OP5 with encoder | |
|---|---|---|
| Limit control | Mechanical stop plates | Optic encoder |
| Speed | Quick | Quick |
| Time to open 90° | 28 seconds | 28 seconds |
| Duty cycle | 35% | 35% |
The OP5 UNI uses a mechanical stop to set the opening and closing limits. The standard OP5 uses an encoder instead. Life also makes slow versions, called OP5L, that open in 45 seconds. The control board setup differs between them, so check the model before you swap a board.
Life Optimo OP5 UNI duty cycle and working time
Life gives the OP5 UNI a 35% duty cycle and a nominal working time of 10 minutes. The motor has thermal protection that trips at 140°C. The Life Optimo OP5 UNI suits a family villa. A shared gate that opens all day needs a different motor, so ask us before you buy.
Life Optimo OP5 UNI and salt air in Oman
The motor works from minus 20°C to plus 70°C and is rated IP54. IP54 covers dust that cannot harm the motor, and splashing water. Life’s manual lists use in acid, saline or explosive places as not allowed. Much of Oman’s coast has salt air. Tell us how close the gate is to the sea, and we will advise before you order.
Life Optimo OP5 UNI swing gate motor kit specifications
| Model | Life Optimo OP5 UNI, kit SETUP OP5 UNI DL |
|---|---|
| Gate type | Double leaf swing gate |
| Maximum leaf length | 5 metres |
| Maximum leaf weight | 500 kg at 3 m, 400 kg at 4 m, 300 kg at 5 m |
| Power supply | 230V AC, 50 Hz |
| Motor power | 210 W, 1.3 A |
| Maximum thrust | 2000 N |
| Rod travel | 450 mm net |
| Time to open 90° | 28 seconds |
| Duty cycle | 35%, 10 minutes nominal |
| Limit control | Mechanical stop plates, no encoder |
| Control unit | GE UNI RS DL with built in receiver |
| Protection rating | IP54 |
| Operating temperature | Minus 20°C to plus 70°C |
| Weight of one motor | 9.5 kg |
| Country of origin | Italy |

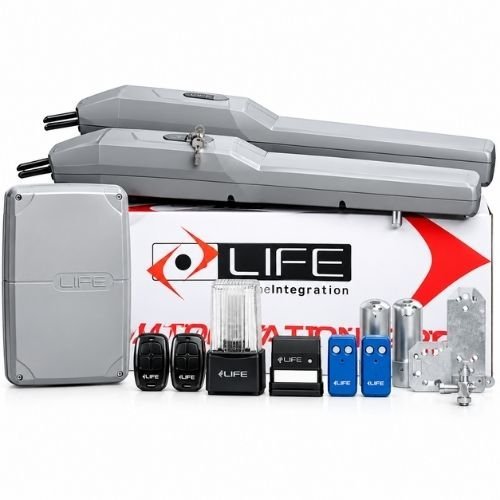

What is included in the Life Optimo OP5 UNI kit
- Two Life Optimo OP5 UNI motors, one for each leaf
- One GE UNI RS DL control unit with receiver
- Two Life Maxi2 rolling code remote controls
- One pair of Life VISIO outdoor photocells
- One Life SUNLED flashing light
- Two sets of motor fixing brackets
- One push button
Quoted separately: installation, a keypad, extra remotes, an electric lock and any work on the pillars. See remotes and accessories for more remotes.
Installing a Life Optimo OP5 UNI swing gate motor in Oman
Both Life Optimo OP5 UNI motors fix to the gate pillars with the supplied brackets. The pillar needs enough free space beside the motor, or a niche cut into it. Our engineer sets the mechanical stops, wires both motors to the control unit and pairs the photocells and remotes. Then we test the full cycle and measure the impact force. Life asks for a test by a professional fitter every 6 months.
Swing gate motor installation for large villas across every governorate
We install in Muscat, Sohar, Nizwa, Salalah, Sur, Duqm and every other governorate. See our swing gate motors, gate spare parts or our installation service. For a gate leaf up to 3 metres, see the Life Optimo OP3 UNI.
Common questions
Is the Life Optimo OP5 UNI a 900 kg motor?
Not by Life’s manual. It gives 500 kg for a 3 metre leaf, 400 kg for 4 metres and 300 kg for 5 metres. We confirm the rating plate before we dispatch.
What is the difference between the OP5 and the OP5 UNI?
The OP5 UNI uses mechanical stop plates to set its limits. The standard OP5 uses an optic encoder. The control board setup is different.
Can the Life Optimo OP5 UNI be used near the sea?
Life’s manual lists use in saline environments as not allowed. Tell us how close the gate is to the coast, and we will advise.
What does the Life Optimo OP5 UNI kit cost?
OMR 232.000 for the kit with two motors, control unit, two remotes, photocells and flashing light. Payment is cash on delivery. Installation is quoted separately.
