What a Gate Automation System Actually Contains

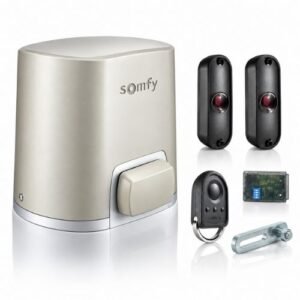

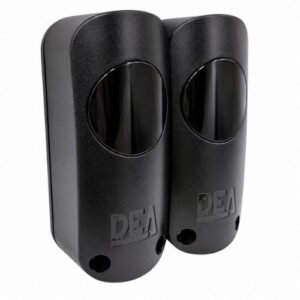

An automated gate is five things working together, and only one of them is the motor. There is the operator itself, a motor and gearbox in a casing. There is the control board, which is the part that decides how the gate behaves. There is the transmission, either a rack and pinion for a sliding gate motor or an arm or ram for a swing gate motor. There is limit detection, which tells the board where fully open and fully closed actually are. And there are the safety devices, photocells across the opening and usually a flashing courtesy lamp.

When two operators look similar in a catalogue but the prices are far apart, the difference is almost never the casing. It is the board and the duty rating. A 24 volt board with encoder feedback knows the leaf's position continuously and reads an obstruction as a change in torque. A cheaper board waits for a mechanical clutch to slip. The first one is gentler on the gate and safer around children. The second one is what you replace in three years.

Sliding or Swing, and Why It Is Usually Decided for You

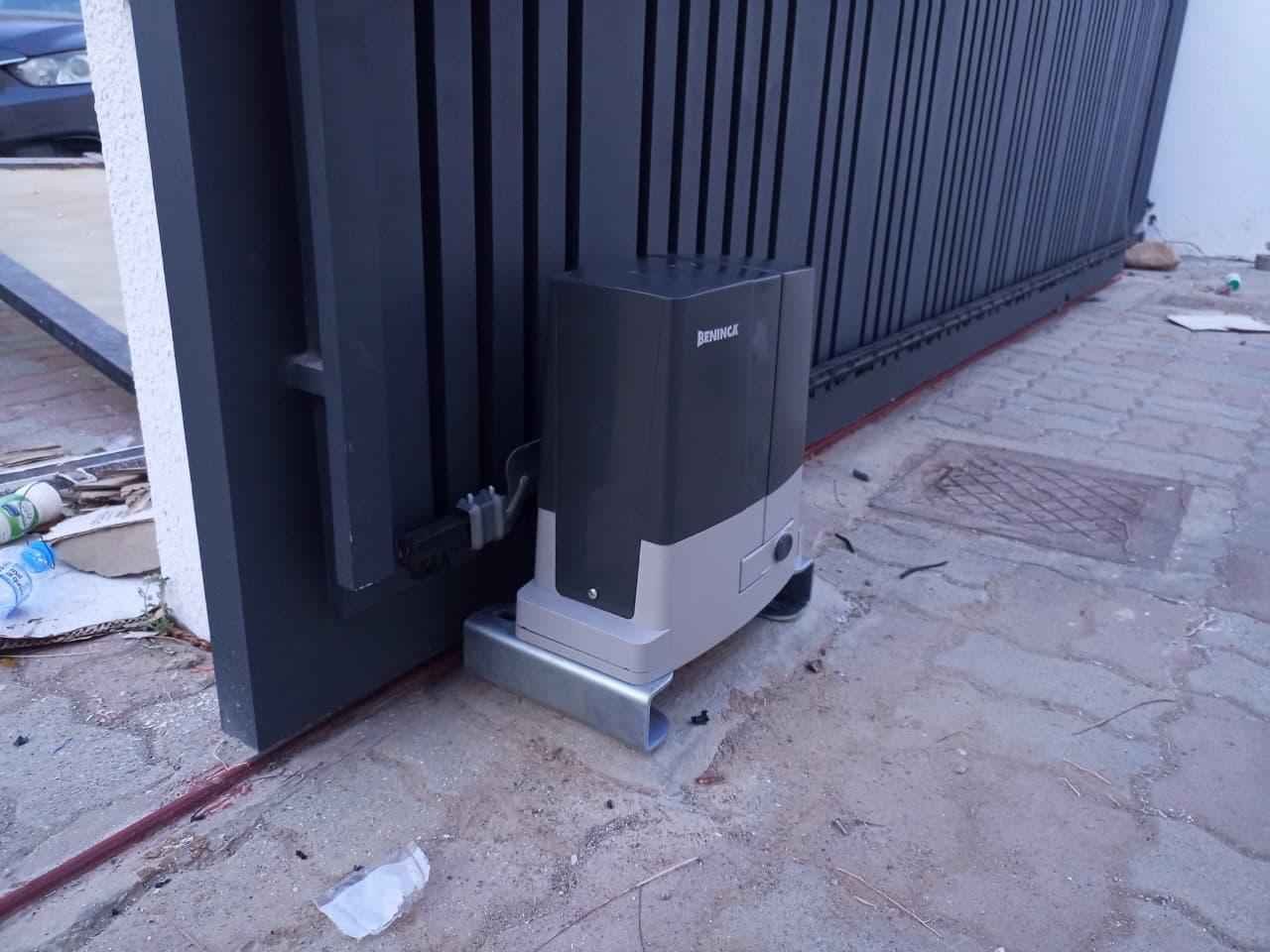

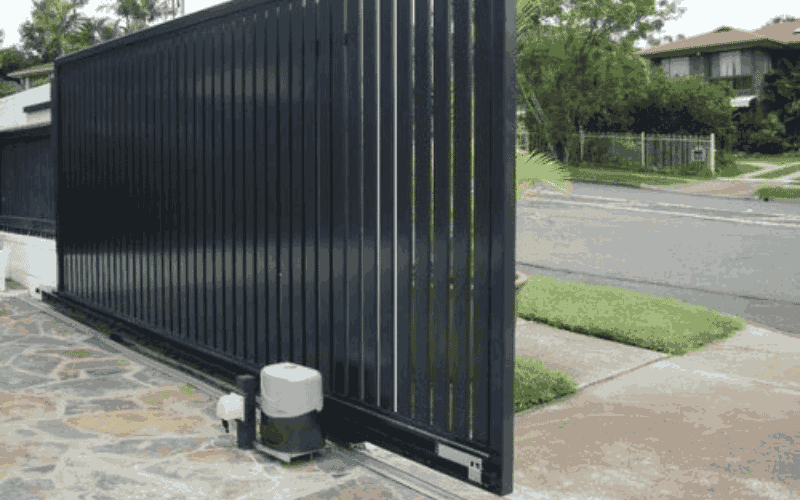

In Oman the answer is normally sliding, and not because it is better. It is because of how plots are built here. Boundary walls run to the edge of the plot and the gate opens straight onto the street, which leaves no arc for a swing leaf to travel through without hitting a parked car or a passing one. A sliding gate needs length along the wall, not depth into the road, and most villas have it.

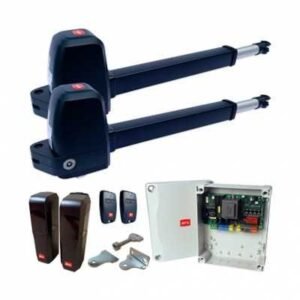

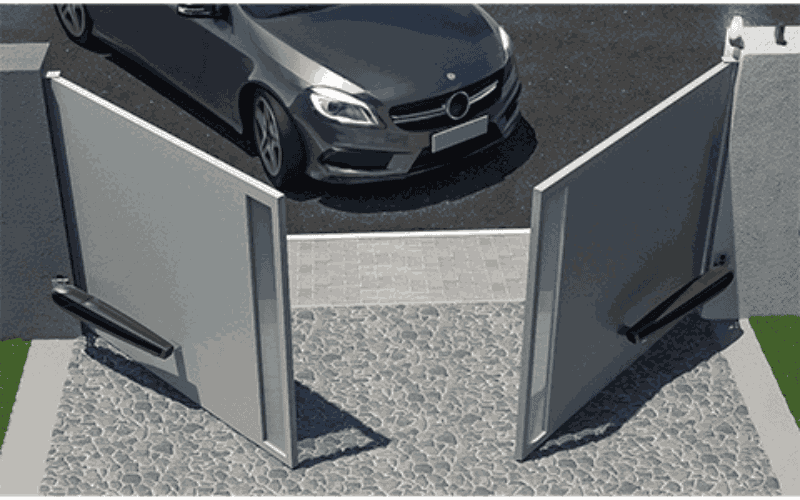

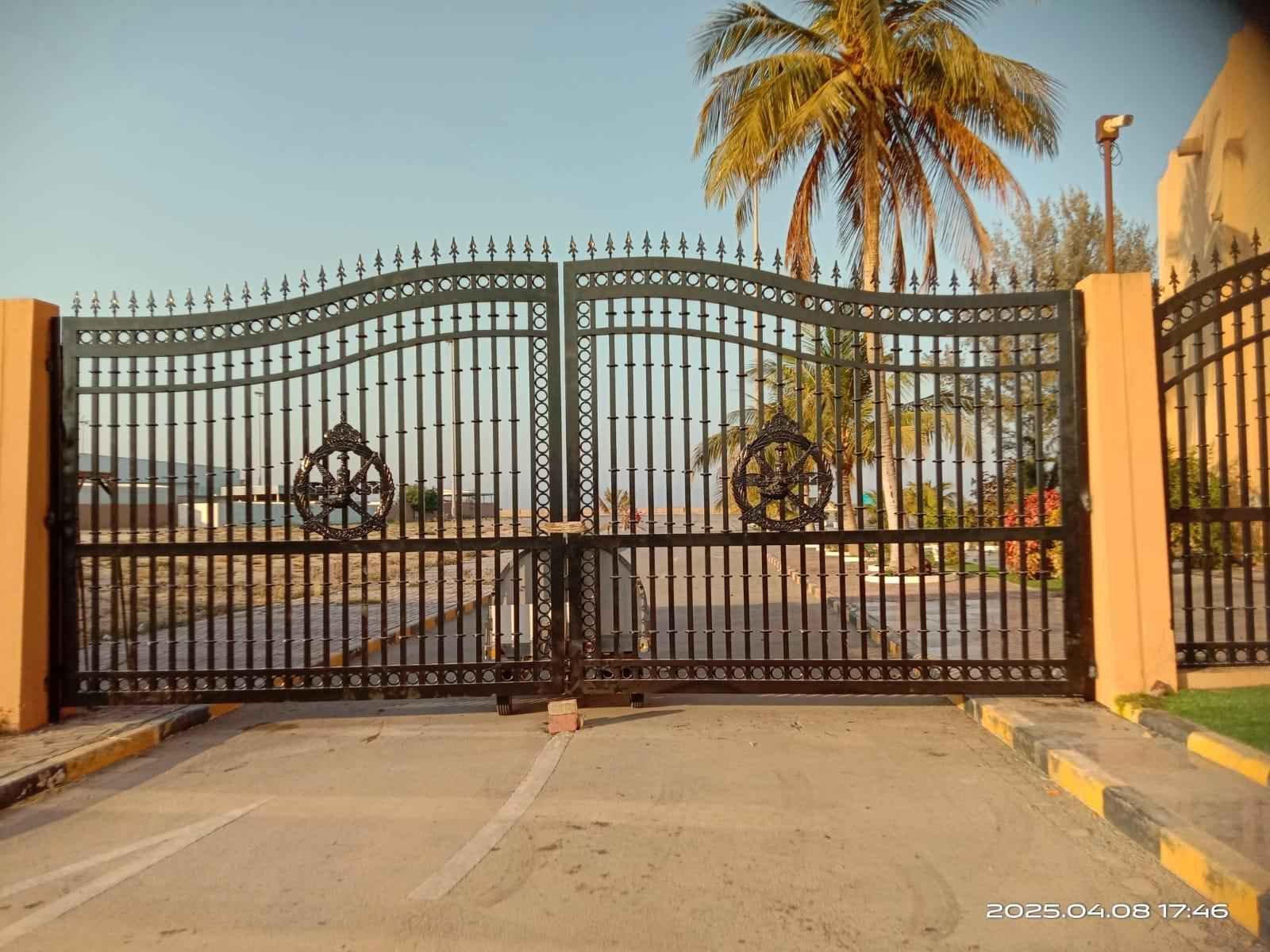

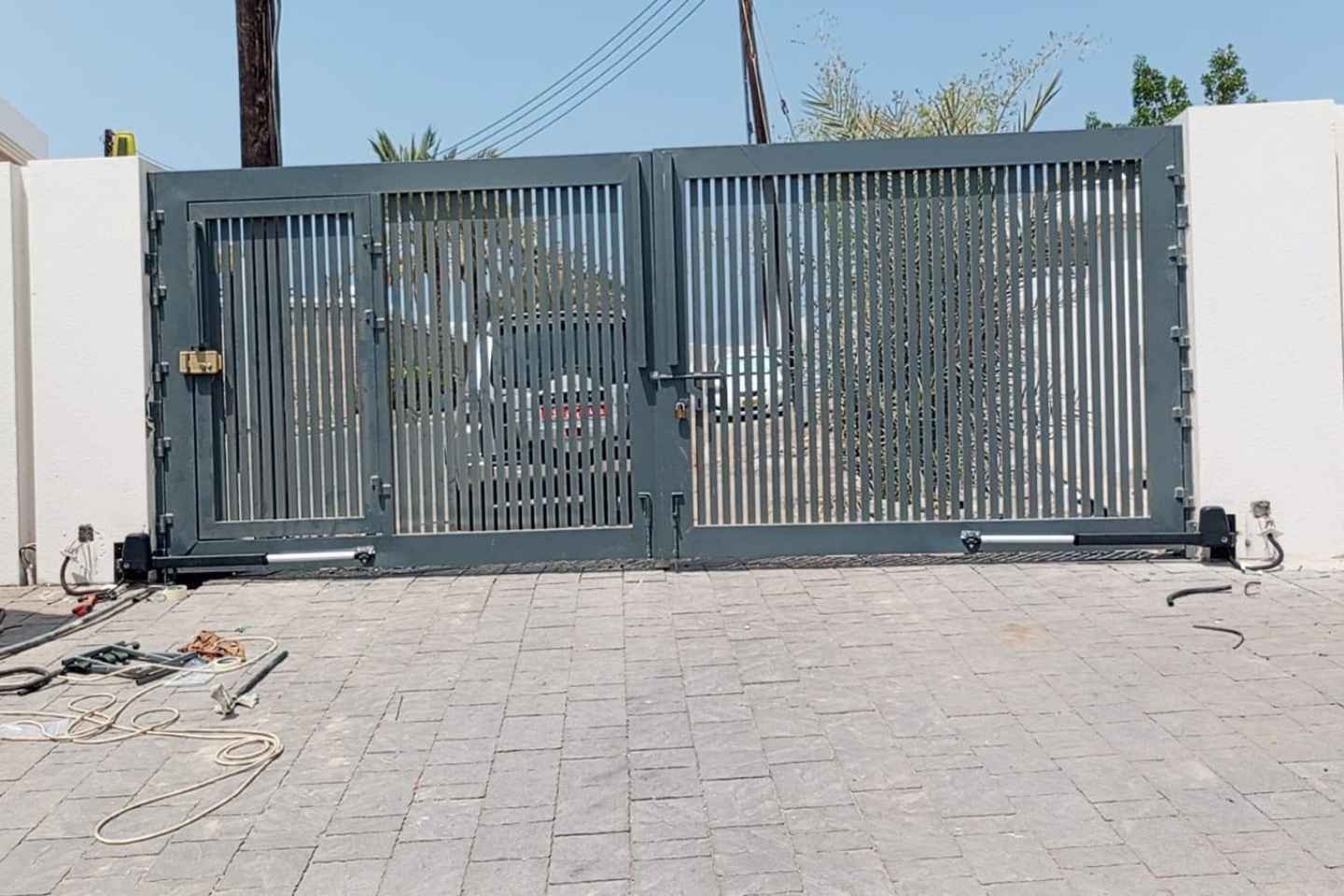

Swing operators make sense where the plot is set back from the road, on internal and garden gates, and on double leaf entrances to compounds and farms. Where the client wants nothing visible at the pillar, underground operators buried in a foundation box are the answer, at a higher installation cost.

Sizing the Operator to the Gate

Two numbers decide the operator: the weight of the leaf and how far it has to travel. A third, duty cycle, decides whether it survives. A villa gate that opens six times a day and a compound gate that opens two hundred times a day can be the same weight and still need different machines.

Weigh the leaf properly rather than guessing. A steel gate 6 m wide in solid sheet is a very different load from the same gate in slatted infill, and installers under estimate it constantly. Then add margin. An operator running at ninety percent of its rating in Omani summer heat is an operator that will fail early.

What Oman's Climate Does to a Gate Motor

This is the part the European manufacturer's brochure does not cover, and it is the reason two identical motors can last twelve years in one country and four here.

Heat is first. Ambient air above forty five degrees in summer, and a black casing in direct sun runs far hotter than that. Electrolytic capacitors on the control board degrade faster the hotter they run, and a board that dies at year four rather than year ten is usually a heat story. Mounting the operator where it gets afternoon shade, or fitting a simple cover, is the cheapest reliability upgrade available.

Dust is second. Fine sand works into the rack teeth, into the pinion, and into limit switch housings, where it turns a smooth travel into a juddering one and eventually into a false obstruction stop. A rack that is brushed and greased once a year behaves completely differently from one that is not, which is most of what a gate maintenance visit consists of.

Salt is third, and it only matters near the coast, which in practice means most of Muscat, Sohar and Sur. Salt air attacks fixings, hinges and the underside of the operator casing. Stainless fixings cost a few rial more and remove the problem entirely.

Warranty, Spare Parts and Who Comes Back

Warranty terms differ by manufacturer and we state the exact term in writing on your invoice rather than quoting a headline number here. What matters more in practice is whether the parts exist in the country. A warranty that requires a six week wait for a board from Italy is not much use when the gate is stuck open.

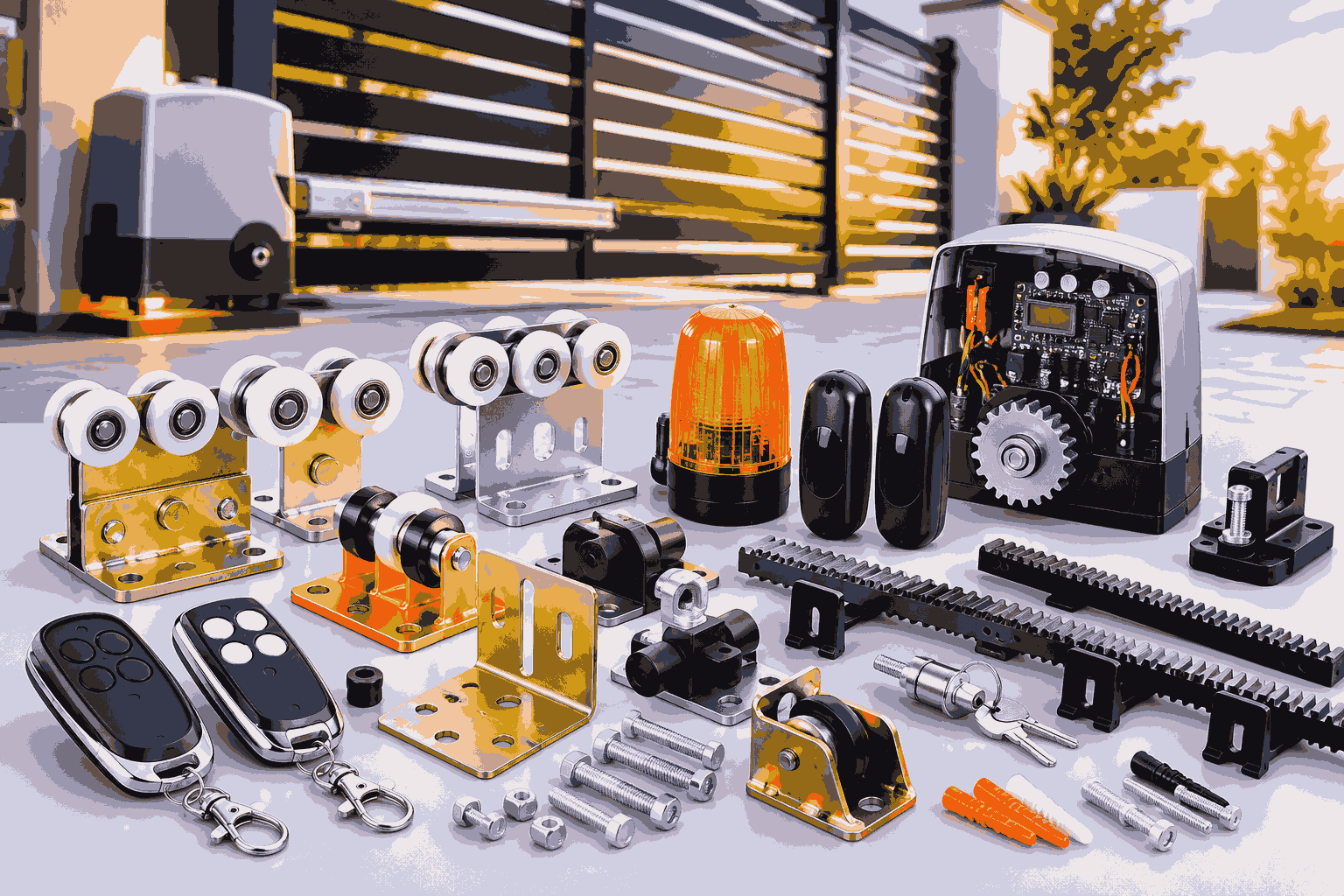

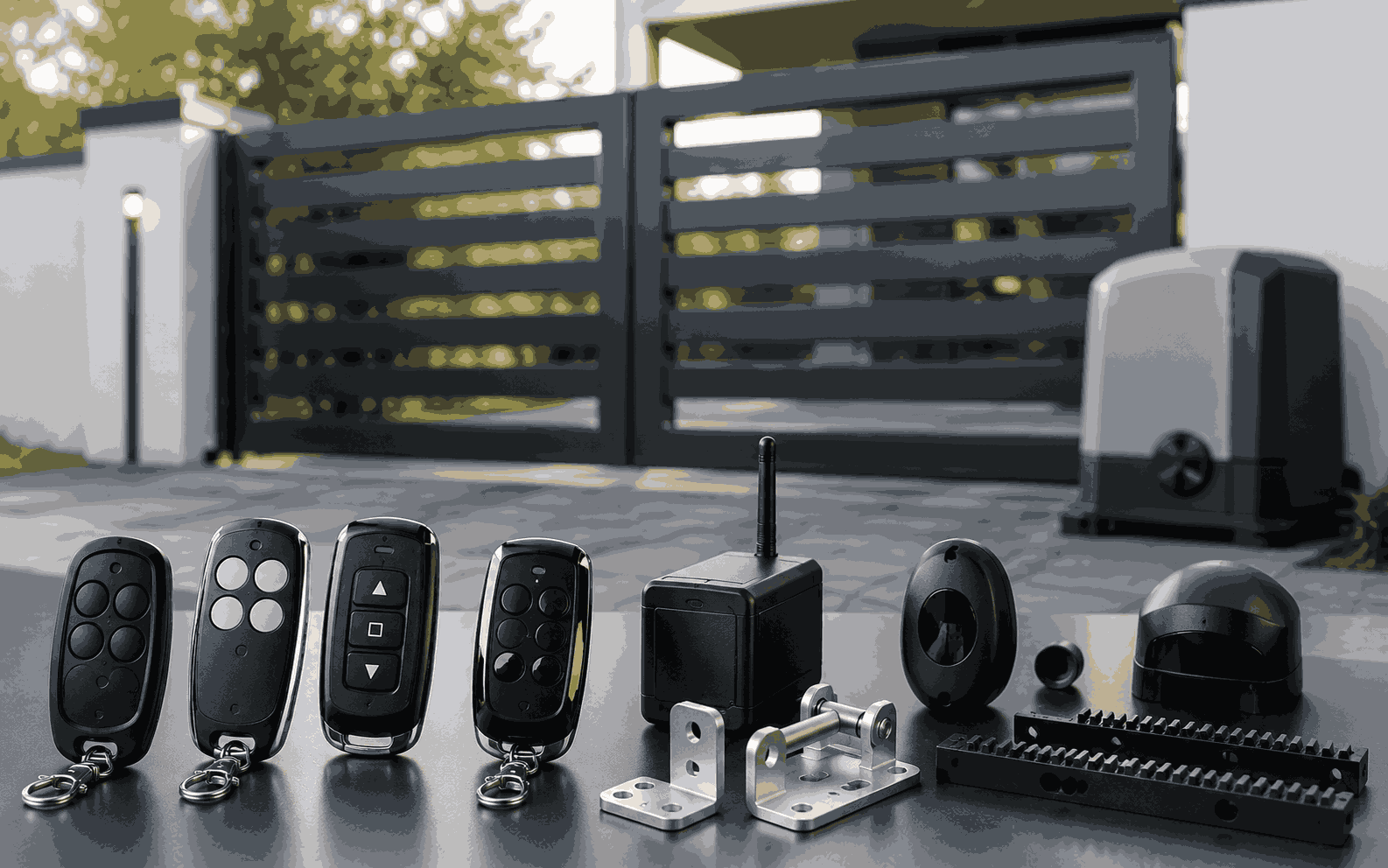

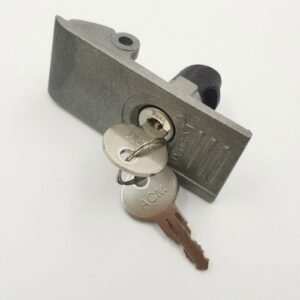

We hold spare parts in Al Khuwair for the brands we carry: control boards, capacitors, limit assemblies, gears, wheels and brackets. We hold remotes and accessories for the same reason, because a lost transmitter should be a same day fix. And when something does stop, the engineer who comes out on a gate motor repair is the one who commissioned it.

If you would rather skip all of this, send us a photograph of your gate and the model plate on your existing motor. Or start with the full store, where everything is priced in OMR and in stock.
