The Somfy Ilmo 50 WT is a tubular motor that fits inside the drum of a rolling shutter, so nothing shows once it is installed. It runs on 230 V and fits any tube with a minimum internal diameter of 47 mm. We hold it in Al Khuwair and fit it, or supply it to installers and shutter fabricators across Oman.
Choosing the torque
The Ilmo 50 WT is made in six torque ratings, and the torque is what decides which shutter it can lift. Buying the wrong one is the most common mistake with tubular motors, because the tube fits regardless of torque and the motor will run, briefly, before it stalls under a curtain heavier than it is rated for.
| Torque | Suits |
|---|---|
| 6 Nm | Small domestic shutters, up to roughly 1.2 m wide |
| 10 Nm | Standard domestic shutters |
| 15 Nm | Wider domestic shutters, or heavier slat profiles |
| 20 Nm | Light commercial shutters |
| 30 Nm | Wide or heavy shop shutters |
| 35 Nm | The heaviest curtains this range covers |
Tell us the width, the height and what the curtain is made of, and we will confirm the torque before you buy anything.
Somfy Ilmo 50 WT Specifications
| Power supply | 230 V, 50 Hz |
| Speed | 17 rpm, all torque ratings |
| Minimum tube diameter | 47 mm |
| Minimum shutter width | 425 mm |
| Cable | White 4 core, 3 m, axial and radial output |
| Final adjustment | 200 revolutions |
| Duty | Not for continuous use |
| Run time before thermal cut out | 3 to 4 minutes |
| Operating temperature | −10 °C to 40 °C standard range |
What is included
The motor, the Ilmo 2 WT circuit board module, the 3 metre connecting cable and the motor connector. The drum adaptor, end caps and crown are matched to your shutter tube and quoted separately, because they vary by manufacturer.
Automatic protection
End position detection sets and remembers the fully open and fully closed points without manual adjustment. Obstacle detection stops the shutter in both directions if it meets resistance, rather than forcing through it. Frost protection prevents operation when the mechanism is likely to be iced, which matters less in Oman than in Europe, but the electronics are the same worldwide.
Installation
Fitted inside the shutter tube using the clip system, wired to a wall switch or a timer, and the limits set on site. A straightforward domestic shutter is usually a same day job. We also supply the motor alone to installers who prefer to fit it themselves.
Common questions
My shutter motor hums but does not move
Usually a torque mismatch or a seized curtain rather than a motor fault. Tell us what the shutter is doing and we will help you work out which.
Can I get it in a higher torque than 35 Nm

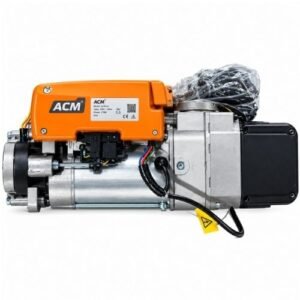

For heavier commercial shutters we would look at a side motor instead of a tubular unit. See rolling shutter motors for the difference.
Do you fit it, or supply it only
Both. Buy it to fit yourself, or we will install it, set the limits and hand it over working.
Not sure which torque your shutter needs? Send us the width, the height and what it is made of, and we will confirm it before you order.
