We supply fiber optic cable in Oman from 2 core to 96 core. It comes for indoor, outdoor and armored installations, in single mode and multimode. The right cable depends on the core count, the fiber type, where it runs and how long it is. So we price each order by quote. Send the details on WhatsApp and we reply with the price, usually the same day.

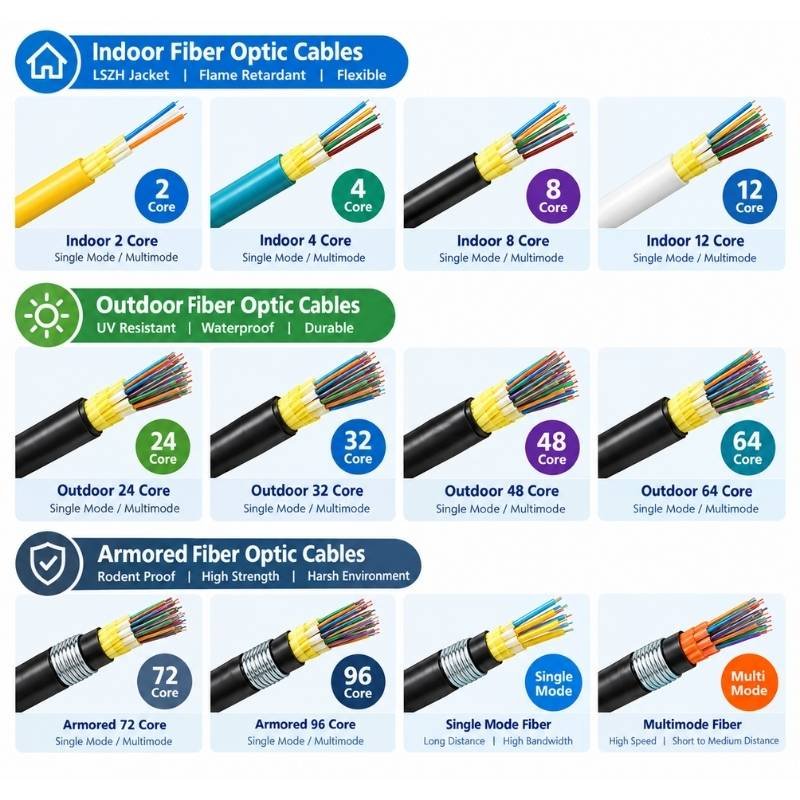

Fiber optic cable in Oman: indoor, outdoor or armored
| Type | Jacket | Use it for |
|---|---|---|
| Indoor | LSZH or PVC, flexible | Inside buildings, risers, server rooms and ceilings |
| Outdoor | Black UV resistant PE, water blocking protection | Duct and conduit runs |
| Armored | Black PE over steel tape or corrugated steel | Direct burial, rodent protection and harsh places |
LSZH means low smoke zero halogen. It gives off little smoke if it burns. Indoor cable has no protection against water or sunlight, so keep it inside. The steel armor in armored cable guards the fibers against rodents and crushing. For a cable hung between poles, tell us, because that needs a self supporting design.
Single mode or multimode fiber optic cable
| Fiber | Core | 1G | 10G |
|---|---|---|---|
| Single mode OS2 | 9/125 micron | Up to 10 km | Up to 10 km |
| Multimode OM1 | 62.5/125 micron | 275 m | 33 m |
| Multimode OM2 | 50/125 micron | 550 m | 82 m |
| Multimode OM3 | 50/125 micron | 550 m | 300 m |
| Multimode OM4 | 50/125 micron | 550 m | 400 m |
These are typical standard distances, and they vary with the equipment. Choose single mode fiber optic cable in Oman for long runs between buildings. Choose multimode for short runs inside one building. The cable and the equipment at both ends must use the same type.
Single mode loses up to 0.36 dB a kilometre at 1310 nm and up to 0.22 dB at 1550 nm. Over 5 km, the cable alone loses up to 1.8 dB at 1310 nm. OM3 loses up to 3.0 dB a kilometre at 850 nm.
How many cores does your fiber optic cable need
| Cores | Typical use |
|---|---|
| 2 or 4 | One link, with spare cores |
| 8 to 24 | Several CCTV cameras or links |
| 48 to 96 | Backbone and telecom runs |
One link normally uses a pair of cores, one for each direction. A single fiber converter uses one core for both directions. So a 12 core cable serves 6 pair links or 12 single fiber links. Count your links, then keep a few spare cores for later. We supply 2, 4, 6, 8, 12, 16, 24, 32, 48, 64, 72 and 96 core.
Fiber optic cable specifications
| Core counts | 2, 4, 6, 8, 12, 16, 24, 32, 48, 64, 72 and 96 |
|---|---|
| Installation types | Indoor, outdoor and armored |
| Fiber types | Single mode OS2 (G.652.D), multimode OM1, OM2, OM3, OM4 |
| Fiber colours | Colour coded |
| Jacket | LSZH or PVC indoor, flexible. Black UV resistant PE outdoor and armored |
| Water protection | Water blocking protection on outdoor cable |
| Armor | Steel tape or corrugated steel, armored type only. Rodent resistant and suitable for direct burial |
| Strength member | Aramid yarn or FRP, for high tensile strength |
| Temperature range | Minus 20°C to plus 70°C indoor, minus 40°C to plus 70°C outdoor |
| Supply | By the metre, or a full drum of 1 km, 2 km or more |
| Price | By quote |
What you need with fiber optic cable

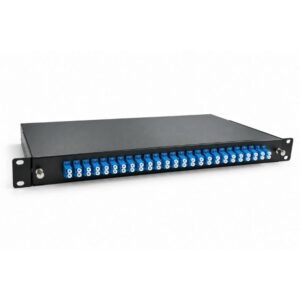

The cable is only one part of a link. Fiber is joined by fusion splicing to pigtails, normally inside an ODF patch panel or a joint box. Patch cords then link the panel to your switch. SFP modules or media converters turn the signal into fiber at each end. Buy your fiber optic cable in Oman with the matching parts, so the whole link comes from one supplier. See our fiber optic products for the pigtails, panels, patch cords and modules.
Get a quote for fiber optic cable in Oman
Send us five things on WhatsApp:
- The core count
- The fiber type, single mode or multimode
- Indoor, outdoor or armored
- The length, or the drum size you want
- A short note on the route, for example duct, buried or inside a building
If you are not sure, tell us what the cable must link and the distance. We will suggest the cable and give the price.
Fiber optic cable supplied across every governorate
We supply Muscat, Sohar, Nizwa, Salalah, Sur, Duqm and every other governorate. Fiber suits a gate controller, a barrier or an access control reader more than 100 metres from the network. See our access control systems, gate barriers and structured cabling.
Common questions
How many cores of fiber optic cable do I need?
One link uses a pair of cores. Use 2 or 4 core for one link. Use 8 to 24 core for several CCTV cameras, and 48 to 96 core for a backbone. Keep a few spare cores.
Can I use indoor fiber optic cable outside?
No. Indoor cable has no protection against water or sunlight. Use outdoor cable in duct, or armored cable for direct burial and rodent protection.
Should I choose single mode or multimode fiber?
Choose single mode OS2 for long runs and links between buildings. Choose multimode for short runs inside one building. Both ends of a link must use the same type.
How much does fiber optic cable cost in Oman?
The price depends on the core count, the fiber type, the cable type and the length. We quote each order on WhatsApp, so you pay for what you need.
