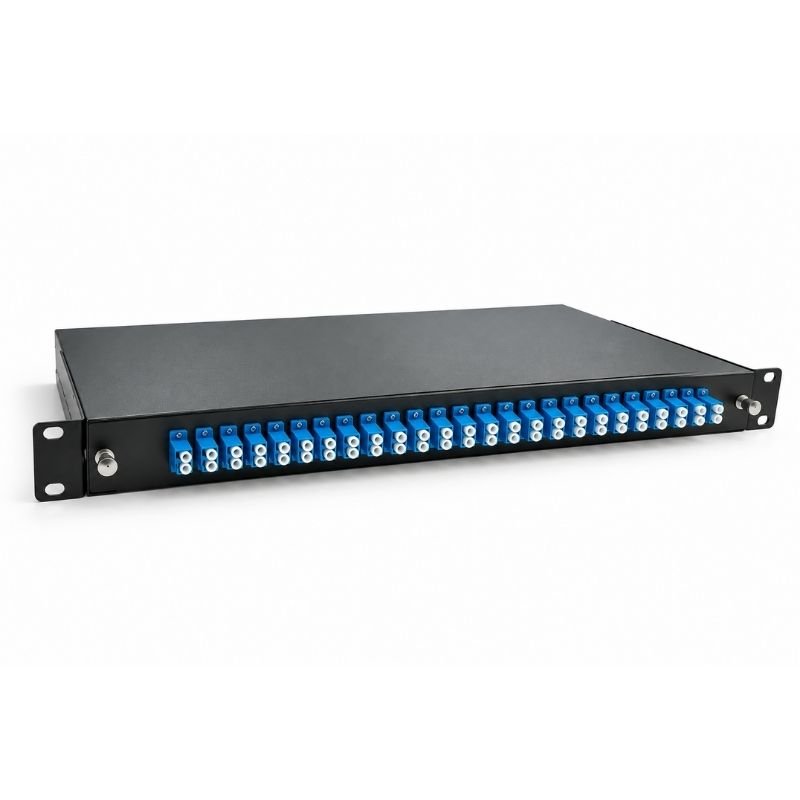

We supply a fiber optic patch panel in Oman, also called an ODF, from 8 to 48 ports. It comes loaded or unloaded, with SC, LC, FC and ST connectors, for a 19 inch rack or the wall. The right panel depends on three things. These are how many fibers you must end, which connector your equipment uses and how you want to mount it. So we price each order by quote. Send the details on WhatsApp and we reply with the price.
Fiber optic patch panel in Oman: loaded or unloaded
| Loaded panel | Unloaded panel | |
|---|---|---|
| Adapters | Fitted | You supply them |
| Pigtails | Fitted | You supply them |
| Splice tray | Included | Included |
| Heat shrink sleeves and cable ties | Included | Not included |
| Best for | A ready to splice panel | A custom or lower cost build |
A loaded panel arrives ready for the cable to be spliced on. An unloaded panel is a metal frame with a splice tray. It costs less and lets you choose the exact adapters and pigtails. Choose loaded if you want one complete part. Choose unloaded if you already hold the adapters.
How many ports does your ODF patch panel need
| Incoming cable | Simplex ports | Duplex LC adapters |
|---|---|---|
| 4 core | 4 | 2 |
| 12 core | 12 | 6 |
| 24 core | 24 | 12 |
| 48 core | 48 | 24 |
A port is one fiber end. A duplex LC adapter holds two fibers. So a 24 port panel built from duplex LC adapters can serve 48 fibers. Count the cores in your cable, then add spare ports for later. See our fiber optic cable for the core counts we supply.
Fiber optic patch panel connectors: SC, LC, FC, ST
| Connector | Typical use |
|---|---|
| SC | ODF panels, media converters and FTTH |
| LC | SFP modules and high density panels |
| FC and ST | Telecom and older equipment |
| E2000 | Telecom, on 16 and 24 port panels |

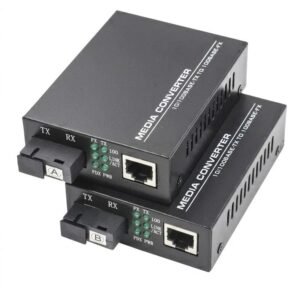

Choose the connector for your fiber optic patch panel in Oman by the equipment at the far end. Most switches and SFP modules use LC. Most media converters use SC. If you are unsure, tell us the equipment, and we will choose the panel.
ODF patch panel for single mode or multimode fiber
Single mode OS2 fiber has a yellow jacket and suits long runs and most CCTV and telecom links. Multimode OM1 to OM4 suits short runs inside a building. OM3 has an aqua jacket. The panel, the pigtails and the cable must all use the same fiber type.
Connector polish also matters. UPC connectors are blue, and APC connectors are green. Never mix UPC and APC in one link, because it causes high loss and can damage the end face. Choose APC only where the equipment needs it, such as FTTH and PON.
Fiber optic patch panel mounting and size
| Ports | Mounting |
|---|---|
| 8 or 12 | Rack or wall |
| 16 or 24 | 19 inch rack, 1U |
| 36 or 48 | 19 inch rack, 1U or 2U |
A 1U panel is 44.45 mm tall, and a 2U panel is 88.9 mm tall. A panel with many ports in 1U needs high density connectors such as duplex LC. Tell us the rack space you have, and we will match the fiber optic patch panel in Oman to it.
Fiber optic patch panel ODF specifications
| Port counts | 8, 12, 16, 24, 36 and 48 |
|---|---|
| Configuration | Loaded or unloaded |
| Connectors | SC, LC, FC, ST, and E2000 on 16 and 24 port panels |
| Fiber types | Single mode OS2, multimode OM1, OM2, OM3, OM4 |
| Polish | UPC (blue) or APC (green) |
| Mounting | 19 inch rack, 1U or 2U, or wall on small panels |
| Material | Cold rolled steel, powder coated |
| Colour | Black or grey |
| Insertion loss | Up to 0.3 dB for the adapter and pigtail |
| Fiber management | Bend radius protection, cable entry points with grommets, cable fixing |
| Operating temperature | Minus 20°C to plus 70°C |
| Price | By quote |
What you need with a fiber optic patch panel
The panel is where the cable ends. The cable is spliced to the pigtails inside the panel, and that needs a fusion splicer. Patch cords then link the panel ports to your switch or media converter. Buy your fiber optic patch panel in Oman with the matching parts, so the whole link comes from one supplier. See our fiber optic products for the cable, pigtails, patch cords and modules.
Get a quote for a fiber optic patch panel in Oman
Send us six things on WhatsApp:
- The number of ports
- The connector, SC, LC, FC or ST
- Single mode or multimode, and UPC or APC
- Loaded or unloaded
- Rack mount or wall mount, and the rack space
- The colour you want, black or grey
If you are not sure, tell us the cable and the equipment at each end. We will suggest the panel and give the price.
Fiber optic patch panels supplied across every governorate
We supply Muscat, Sohar, Nizwa, Salalah, Sur, Duqm and every other governorate. A fiber link suits a gate controller, barrier or reader more than 100 metres from the network. See our access control systems, gate barriers and structured cabling.
Common questions
What is an ODF fiber optic patch panel?
An ODF is an optical distribution frame. It holds the ends of a fiber cable, the splices and the adapters in one place, usually in a rack. It lets you connect and change links with patch cords.
What is the difference between a loaded and an unloaded patch panel?
A loaded panel comes with adapters, pigtails and a splice tray fitted. An unloaded panel is the frame and splice tray only, so you supply the adapters and pigtails.
How many ports does a fiber optic patch panel need?
Count the cores in the cable and add spare ports. A duplex LC adapter holds two fibers. So a 24 port panel built from duplex LC adapters can serve 48 fibers.
How much does a fiber optic patch panel cost in Oman?
The price depends on the port count, the connector, the fiber type, and whether it is loaded or unloaded. We quote each order on WhatsApp, so you pay for what you need.
