This needs a control board with a 2 wire photocell input

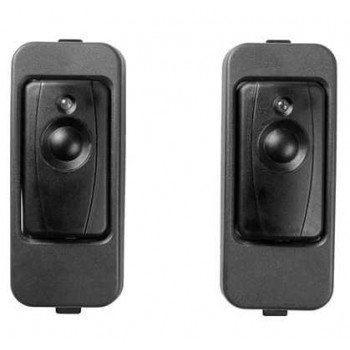

The Marantec Special 630 connects using Marantec’s own 2 wire technology, where power, signal and a self test all run over just two wires. Your control board needs a matching 2 wire light barrier input for this to work.
Our Marantec garage door openers have this input built in, which is why this is the correct native photocell if you already own a Marantec system. Most other brands in this trade, BFT, CAME, NICE, FAAC, Beninca and Life among them, use a different, more common 3 wire connection instead, and this photocell is not built for that interface.
If you are not sure which type your control board has, our DEA Linear XS photocell uses the more universal 3 wire style and suits almost any brand. Tell us your gate motor brand before ordering, and we will point you to the right one.
Specifications
| Detection range | 1 to 8 metres |
|---|---|
| Voltage | 24V DC |
| Connection | 2 wire, polarity reversal protected |
| IP rating | IP54 |
| Dimensions | 27 x 64.5 x 19 mm |
| Indicator | LED, shows function and lens contamination |
Choosing the right mounting version
Marantec sells this photocell in a standard kit, with an installation bracket set, and in a version built specifically for mounting into a thin, 1 mm thick garage door frame. Tell us how you plan to mount it, on a pillar with a bracket, or recessed into the door frame itself, so we send the correct version.
What is included
- One transmitter unit
- One receiver unit
- Two 10 metre connection cables
- Four cable connectors
- Installation material
Looking for a control board, a warning light, or other gate hardware to go with this? Our full range of gate spare parts is stocked in Muscat.
Installation
Our engineer confirms your control board has a 2 wire photocell input before fitting, mounts the transmitter and receiver at matching height, runs the two wire connection back to the board, and tests the safety cut out.
We install across all eleven governorates from our shop in Al Khuwair.
Common questions
Will this work with my gate motor?
Only if your control board has a 2 wire photocell input. Our Marantec drives have this. If you have a different brand, tell us and we will confirm, or point you to our DEA Linear XS instead, which is built for the more common 3 wire type.
Which mounting version do I need?
It depends how you plan to fit it, on a pillar with a bracket, or recessed into a thin garage door frame. Tell us before ordering.
What is the detection range?
Up to 8 metres.
What is the price?
OMR 52.260 for the transmitter and receiver pair.
Ask before you buy
We do not take payment online. Tell us your gate motor brand and how you plan to mount it on WhatsApp to +968 75219236, or call the shop on +968 75219236. We are open 9 am to 9 pm every day.
