The BFT Kustos BT A25 is an Italian 24V swing gate motor kit for double leaf gates. It takes leaves up to 2.5 metres long and 400 kg. BFT lists the A25 as a phase out model, so we confirm stock before you order. We stock the kit in Al Khuwair for OMR 253.000 and fit it across Oman.
BFT Kustos BT A25 is a phase out model
| Kustos BT A25, this kit | Kustos BT B25, current | |
|---|---|---|
| Maximum leaf length | 2.5 metres | 3 metres |
| Maximum leaf weight | 400 kg | 400 kg |
| Useful rod stroke | 295 mm | 250 mm |
| Time to open 90° | About 15 seconds | About 12 seconds |
| Protection rating | IP44 | IP44 |
BFT marks the A25 as phase out on its own product page. The B25 is the current motor, and it takes a leaf 0.5 metre longer. Tell us your leaf length and weight. We will say if the A25 or the B25 suits your gate. Parts and service for a phase out motor can get harder to find, so ask us about that too.
BFT Kustos BT A25 24V motor and the D-Track system
The Kustos BT A25 runs on 24V and draws 40 W. The control unit is the THALIA, which powers the motors from a 230V board supply. BFT calls its impact reaction D-Track. It follows the gate path and adjusts the force. BFT also fits magnetic limit switches. They have no moving contacts to clog with sand.
BFT Kustos BT A25 cycles per hour and duty
BFT lists up to 30 cycles an hour for the Kustos BT range. BFT also classes the A25 for intensive use. Each time a car leaves and returns, the gate does two cycles. So 30 cycles is about 15 car trips an hour. A busy villa or a small shared gate sits inside that. Heat lowers the real figure, so ask us about a gate in full sun.
BFT Kustos BT A25 in Oman dust and heat
The motor works from minus 20°C to plus 55°C and is rated IP44. IP44 covers splashes and objects over 1 mm, but not fine dust. BFT covers the worm screw completely, which keeps sand and water off the moving parts. Keep the rod clean, and keep the cover on.
BFT Kustos BT A25 swing gate motor kit specifications
| Model | BFT Kustos BT A25, part number 2611759 |
|---|---|
| Gate type | Double leaf swing gate |
| Maximum leaf length | 2.5 metres |
| Maximum leaf weight | 400 kg |
| Motor voltage | 24V DC |
| Board power supply | 230V AC |
| Power consumption | 40 W |
| Useful rod stroke | 295 mm |
| Maximum opening angle | 118° |
| Time to open 90° | About 15 seconds |
| Limit switches | Magnetic |
| Locking and release | Mechanical lock, personal key release |
| Impact reaction | D-Track |
| Control unit | THALIA |
| Protection rating | IP44 |
| Operating temperature | Minus 20°C to plus 55°C |
| Country of origin | Italy |

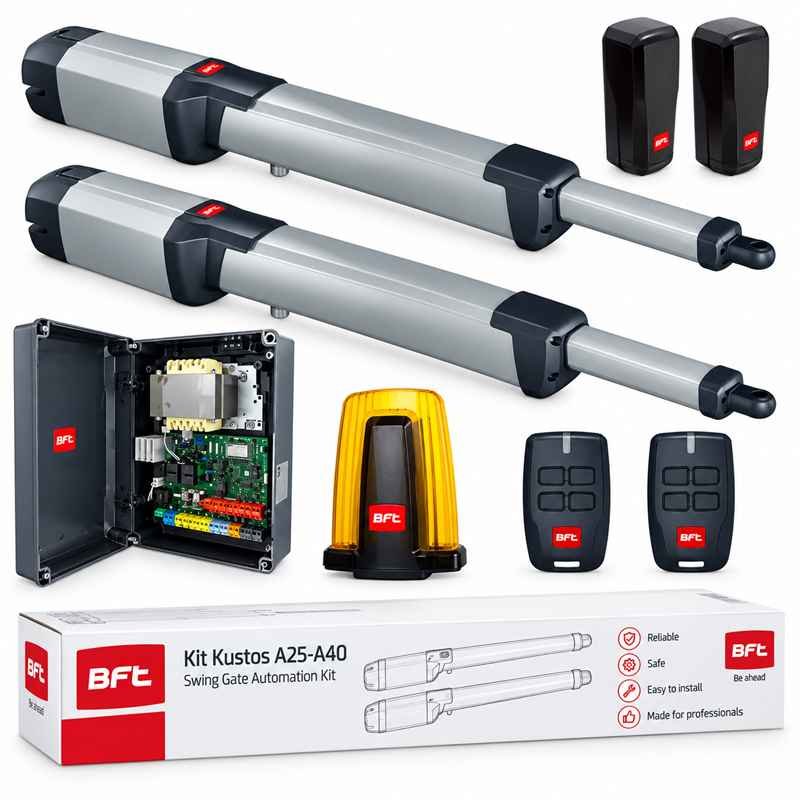

What is included in the BFT Kustos BT A25 kit
- Two BFT Kustos BT A25 motors, one for each leaf
- One THALIA 24V control unit with receiver
- One pair of self aligning photocells
- One flashing light with built in antenna
- Two BFT Mitto2 B RCB remote controls
- Two sets of motor fixing brackets
- One push button
Quoted separately: installation, a keypad, extra remotes, an electric lock and a back up battery for the THALIA board. See BFT Mitto remote controls and remotes and accessories for more.
Installing a BFT Kustos BT A25 swing gate motor in Oman
Our engineer checks the hinges and the leaf balance first. A leaf that drags will stall the motor, so we fix that first. We fix the brackets level, set the leaf positions and let the THALIA learn the gate path. Then we wire the photocells and measure the impact force. The key release opens each leaf by hand in a power cut. We show you how to use it before we leave. We also leave you the key, a printed note of the settings and our WhatsApp number for any later question.
Swing gate motor installation for villas across every governorate
We install in Muscat, Sohar, Nizwa, Salalah, Sur, Duqm and every other governorate. See our swing gate motors, gate spare parts or our installation service. For a 230V swing motor with a longer leaf, see the BFT Athos AC A40 kit.
Common questions
Is the BFT Kustos BT A25 still made?
BFT lists it as a phase out model. The current motor is the Kustos BT B25. We confirm stock before you order.
What leaf size does the BFT Kustos BT A25 take?
Up to 2.5 metres long and 400 kg. Both limits apply. A longer or heavier leaf needs a different motor.
Is the BFT Kustos BT A25 a 24V motor?
Yes. The motor runs on 24V and draws 40 W. The THALIA control unit takes 230V and powers the motors.
What does the BFT Kustos BT A25 kit cost?
OMR 253.000 for the kit with two motors, control unit, two remotes, photocells and flashing light. Payment is cash on delivery. Installation is quoted separately.
Order the BFT Kustos BT A25 in Oman
Send your leaf length, leaf weight and a photo of the pillars on WhatsApp to +968 75219236. You can also call +968 75219236. Visit us at Shop No 176, Way Street No 57, Block No 17/2, Al Khuwair, Muscat, Oman. We are open 9 am to 9 pm every day. Email contact@falajtech.com.
