The longer reach model, not simply the bigger one
A40 reaches a 4 metre leaf, further than the A25, but is rated to only 400 kg, less than the A25’s 700 kg. If your gate is long but built light, this is the correct choice. If it is short but heavy, the A25 suits it better. Read your actual gate’s weight and length against both models rather than assume the larger number means the stronger motor.
Left or right handed, confirm before ordering
BFT sells this model in AL and AR versions, matching which direction your gate leaf swings. Tell us which way your gate opens, or send a photograph, and we will confirm the correct handing before dispatch.
Specifications
| Model | BFT Athos AC A40 |
|---|---|
| Max leaf weight | 400 kg |
| Max leaf length | 4 metres |
| Power | 230V, 280W |
| Rod stroke | 400 mm |
| Opening angle | 110° |
| Cycle time, 90° | 16 seconds |
| Duty cycle | Semi intensive |
| IP rating | IP54, genuine dust and splash protection |
| Control unit | ALENA SW2, for one or two operators |
| Country of origin | Italy |
The same jointed arm as the A25 gives this motor the same advantage over a straight ram operator like our Phobos range, it reaches around wide or awkward pillars a straight arm cannot clear.

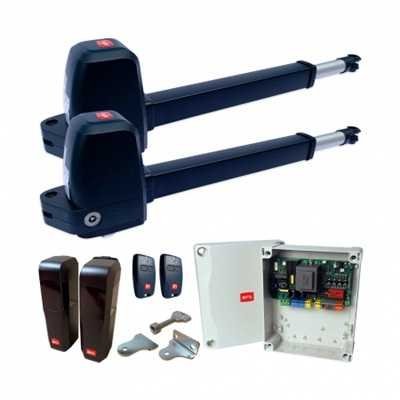

What is included
- Two BFT Athos AC A40 motors
- One ALENA SW2 control panel
- One pair of self aligning photocells, 30 metre range
- Flashing light with incorporated antenna
- Two remote controls, 50/100 metre range
- Push button
- Two fixing brackets
Quoted separately: installation and additional remotes. See remotes and accessories.
Installing a long reach articulated arm gate motor in Oman
Our engineer confirms leaf length, weight and handing before fitting, mounts both arms, wires the control panel, photocells and blinker, then sets opening angle and force for your gate.
Swing gate motor installation for long leaf gates across every governorate
We install in Muscat, Sohar, Nizwa, Salalah, Sur, Duqm and every other governorate. See our swing gate motors, the BFT range, or our installation service.
Common questions
Is the A40 stronger than the A25?
No. It reaches further, 4 metres against 2.5, but is rated to less weight, 400 kg against 700. Choose by whichever figure your gate needs.
Do I need the left or right handed version?
Yes. Tell us your gate’s swing direction or send a photograph, and we will confirm AL or AR before dispatch.
Will it fit a wide pillar?
Yes, this is the articulated arm’s main advantage over a straight ram motor, it clears wide or awkward pillars a rigid arm cannot reach around.
What is the price?
OMR 212.000 for the complete pair kit.
Order the BFT Athos AC A40 in Oman
Send your gate weight, leaf length, pillar shape and swing direction on WhatsApp to +968 75219236, or call the shop on +968 75219236. We are open 9 am to 9 pm every day.
