A25 means a 2.5 metre leaf, the same logic as our sliding range
BFT’s swing gate naming works the same way as the sliding range already explained on our BFT brand page: the number after the A is the leaf length in metres, multiplied by ten. A25 means a leaf up to 2.5 metres, and separately this motor is rated to 400 kg. Both figures apply, so a leaf within the length but over the weight, or the reverse, is still outside this motor’s rating.
This kit includes two motors, built for a double leaf gate
As supplied, this is a pair kit, one motor for each leaf of a double swing gate, sharing a single ALENA SW2 control panel. If your gate has only one leaf, you do not need both motors from this kit, tell us before ordering and we will confirm what a single leaf setup actually needs, since buying the pair kit for one gate leaf wastes half of it.
IPX4, and why the X matters more than the 4
This motor carries an IPX4 rating, not IP44. The difference is not a smaller number, it is a missing one. The second digit, 4, is a real, confirmed figure covering protection against splashing water. The first digit is replaced with an X, which in the IP rating system means no test has been carried out or published for that category at all, in this case solid particle and dust ingress.
That is a genuinely different situation from a motor carrying IP24 or IP44, where a dust figure exists even if a modest one. Here there simply is none. In a climate where blown sand is routine, that is worth knowing plainly rather than assuming an untested rating means no risk. We would recommend siting this motor where it has some shelter from direct sand exposure, and checking it periodically rather than treating it as fully sealed.
Specifications
| Model | BFT Phobos AC A25 |
|---|---|
| Max leaf weight | 400 kg |
| Max leaf length | 2.5 metres |
| Motor voltage | 230V |
| Power consumption | 210 W |
| Rod stroke | 350 mm |
| Opening angle | 120° |
| Cycle time, 90° | Approximately 18 seconds |
| Duty cycle | Semi intensive |
| IP rating | IPX4, dust not rated |
| Control unit | ALENA SW2, for one or two operators |
| Slowdown | Yes |
| Impact reaction | Electronic clutch |
| Country of origin | Italy |
Semi intensive suits a normal villa gate comfortably. For a shared or compound entrance opening far more often, ask us about a heavier duty BFT swing motor instead.

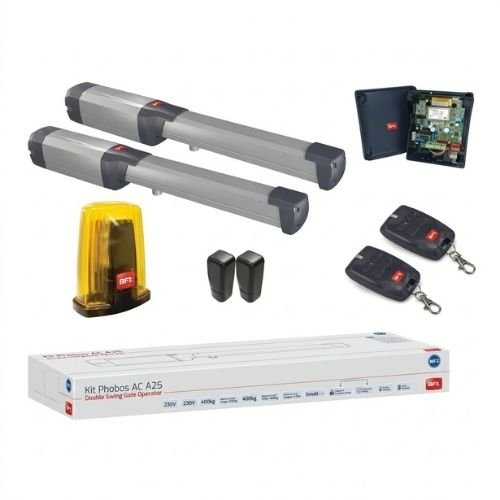

What is included in the kit
- Two BFT Phobos AC A25 swing gate motors, 230V
- One ALENA SW2 control panel
- One pair of adjustable photocells, 20 metre range
- Flashing light with incorporated antenna
- Two BFT Mitto2 B RCB remote controls
- Push button
- Two fixing brackets
Quoted separately: additional remotes and installation. See remotes and accessories and gate spare parts.
Installing a swing gate motor in Oman
Our engineer confirms your leaf weight and length against this motor’s rating before fitting, mounts both arms to the pillars and leaves, wires the shared control panel, photocells and blinker, then sets the opening angle, slowdown and torque for your specific gate.
Swing gate motor installation for villas and compounds across every governorate
We install this Italian swing gate motor in Muscat, Sohar, Nizwa, Salalah, Sur, Duqm and every other governorate, from our own shop in Al Khuwair. See the full swing gate motors range, the rest of the BFT range, or our gate automation installation service.
Common questions about the BFT Phobos AC A25 in Oman
What does A25 mean?
It refers to leaf length, 2.5 metres, using BFT’s swing gate naming convention. The motor is separately rated to 400 kg, and both figures need to fit your gate.
Do I need both motors in this kit?
Only if your gate has two leaves. For a single leaf gate, tell us before ordering and we will confirm what you actually need rather than sell you a full pair kit for one leaf.
Is this motor dust resistant?
Not officially. Its IPX4 rating covers splash protection only, with no published dust rating. We would recommend siting it with some shelter from direct sand exposure.
Will it work during a power cut?
No. This is a 230V mains motor with no battery backup option.
What is the price?
OMR 212.000 for the complete pair kit. Installation is quoted separately.
