The Nice Wingo 4 kit is an Italian 230V swing gate motor kit for double leaf gates. Nice limits it to leaves up to 2 metres long. It suits a small villa gate, a side gate or a garden gate, not a wide driveway entrance. We stock the complete kit in Al Khuwair for OMR 170.000 and fit it across Oman.
Nice Wingo 4 kit leaf limit is 2 metres
| Wingo 4, this kit | Wingo 5 | |
|---|---|---|
| Rod travel | 320 mm | 470 mm |
| Maximum thrust | 1500 N | 1700 N |
| Nominal thrust | 500 N | 600 N |
| Speed, no load | 0.016 m/s | 0.013 m/s |
| Length of motor | 770 mm | 920 mm |
The Wingo 4 has a shorter rod, so it suits a shorter leaf. Nice’s chart for the Wingo 4 stops at a 2 metre leaf. The allowed weight falls as the leaf gets longer. For a wider gate, ask us about the Wingo 5. Tell us your leaf length and weight on WhatsApp, and we will check both limits.
Nice Wingo 4 kit cycles per hour and gate speed
Nice rates the Wingo 4 at 230V for 30 cycles an hour at its nominal torque. Each time a car leaves and returns, the gate does two cycles. So 30 cycles is about 15 car trips an hour. The rod moves at 0.016 metres a second, so the full 320 mm travel takes about 20 seconds. A family gate fits well. A busy shared entrance does not, so ask us first.
Nice Wingo 4 kit and the Oman wear index
Nice scores wear in a demand index, and its manual adds points for heat, a blind leaf and wind. A blind leaf adds 15%. A gate in a windy place adds 15%. Nice adds another 20% for the operating temperature. A solid steel gate in a hot, open yard picks up points quickly. Nice estimates a life of 80,000 to 250,000 cycles, and it falls as the index rises.
Nice Wingo 4 kit dust and temperature
The motor works from minus 20°C to plus 50°C and is rated IP44. IP44 covers splashes and objects over 1 mm, but not fine dust. Summer heat sits close to the top of that range. Keep the rod clean of sand, and keep the cover on. Nice asks for a service visit within 6 months.
Nice Wingo 4 kit swing gate motor specifications
| Model | Nice Wingo 4 kit, motor WG4000 |
|---|---|
| Gate type | Double leaf swing gate |
| Maximum leaf length | 2 metres |
| Power supply | 230V AC, 50 Hz |
| Maximum power | 200 W, 1.5 A |
| Nominal power | 130 W, 0.5 A |
| Maximum thrust | 1500 N |
| Nominal thrust | 500 N |
| Rod travel | 320 mm |
| Speed, no load | 0.016 m/s |
| Duty | 30 cycles per hour at nominal torque |
| Limit control | Mechanical limit switch |
| Control unit | Nice MC800 |
| Protection rating | IP44 |
| Operating temperature | Minus 20°C to plus 50°C |
| Weight of one motor | 6 kg |
| Country of origin | Italy |

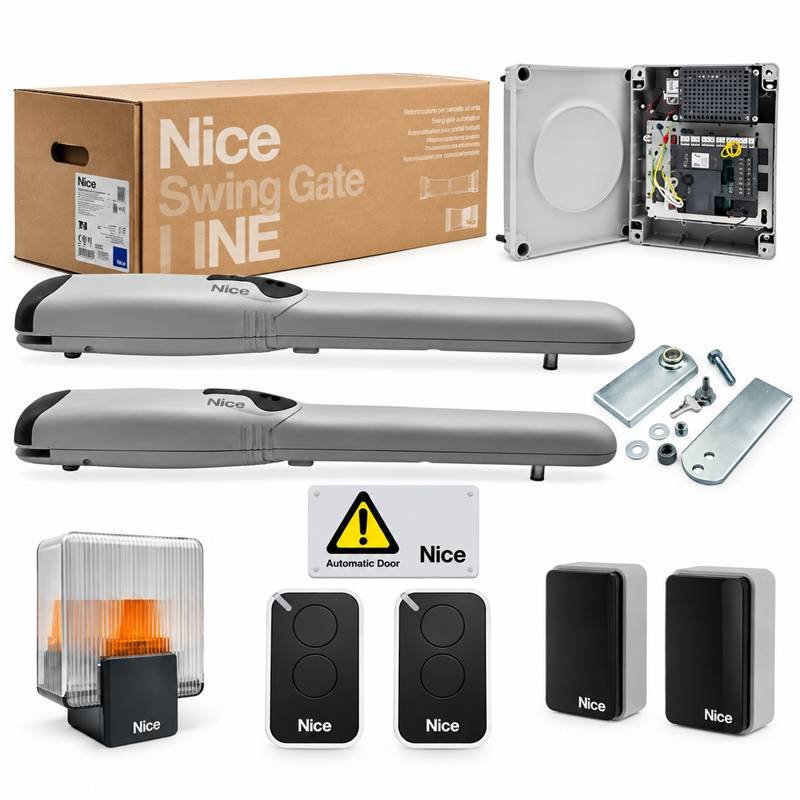

What is included in the Nice Wingo 4 kit
- Two Nice Wingo 4 motors, one for each leaf
- One Nice MC800 control unit
- Two Nice ON2E remote controls
- One Nice OXI plug in radio receiver
- One pair of Nice EPM BlueBUS photocells
- One flashing light
- Two sets of mounting brackets
Quoted separately: installation, a keypad, extra remotes, an electric lock and stop blocks. See remotes and accessories for more remotes.
Installing a Nice Wingo 4 kit swing gate motor in Oman
Our engineer checks the hinges and the leaf balance first. The leaf must stay put when stopped halfway, and it must move freely by hand. We fix the rear bracket by Nice’s chart so the angles match. We fix the front bracket to a solid part of the leaf. Then we set the limit switch, wire the BlueBUS photocells and test the impact force. The key release opens each leaf by hand in a power cut. We show you how to use it before we leave, and we leave you a printed note of the settings.
Swing gate motor installation for villas across every governorate
We install in Muscat, Sohar, Nizwa, Salalah, Sur, Duqm and every other governorate. See our swing gate motors, the Nice range, gate spare parts or our installation service.
Common questions
What leaf length does the Nice Wingo 4 kit take?
Up to 2 metres a leaf. The allowed weight falls as the leaf gets longer. For a wider gate, ask about the Wingo 5.
How many times an hour can the Nice Wingo 4 kit run?
Nice lists 30 cycles an hour at nominal torque. That is about 15 car trips an hour. A busier gate needs a different motor.
Is the Nice Wingo 4 kit a 230V motor?
This kit uses the 230V WG4000 motor with the MC800 control unit. Nice also makes a 24V Wingo 4. Check the label before you buy parts.
What does the Nice Wingo 4 kit cost?
OMR 170.000 for the kit with two motors, control unit, two remotes, photocells and flashing light. Payment is cash on delivery. Installation is quoted separately.
Order the Nice Wingo 4 kit in Oman
Send your leaf length, leaf weight and a photo of the pillars on WhatsApp to +968 75219236. You can also call +968 75219236. Visit us at Shop No 176, Way Street No 57, Block No 17/2, Al Khuwair, Muscat, Oman. We are open 9 am to 9 pm every day. Email contact@falajtech.com.
