The DEA Livi 6N is an Italian 230V sliding gate motor kit for gates up to 600 kg. Two things decide whether it suits your gate, and neither is the 600 kg. DEA allows 60 openings a day on a 5 metre gate. The motor is also rated IPX4, with no dust rating. We stock the complete kit in Al Khuwair for OMR 172.000 and fit it across Oman.
DEA Livi 6N daily limit: 60 cycles on a 5 metre gate
| Gate | DEA limit |
|---|---|
| Cycles per hour, 5 m gate | 18 |
| Cycles in 24 hours, 5 m gate | 60 |
| Motor thermal cut out | 140°C |
Each time a car leaves and returns, the gate does two cycles. So 60 cycles is about 30 car trips a day. A family villa sits well inside that. A shared compound, a shop or a staff yard does not. The motor moves the gate at 10 metres a minute. A 5 metre gate takes about 30 seconds to open.
DEA Livi 6N is rated IPX4, with no dust rating
DEA lists the 6N as IPX4. The X means the motor is not rated for dust at all. IPX4 covers splashing water. It says nothing about sand. Oman has plenty of both, so keep the cover on, the track clear and the rack clean. The magnetic 6N/M is rated IP44, which adds protection from objects over 1 mm.
The motor works from minus 20°C to plus 50°C. Summer heat inside a closed housing sits at the top of that range.
DEA Livi 6N or the newer Livi 6X/M
| Livi 6N, this kit | Livi 6X/M | |
|---|---|---|
| Limit switch | Electromechanical | Magnetic |
| Protection rating | IPX4 | IP44 |
| Control unit | NET230N | NET230N |
| Maximum thrust | 340 N | 340 N |
| Cycles per day, 5 m gate | 60 | 60 |
| Generation | Earlier N series | Newer X series |
The power and duty figures are the same. The difference is the limit switch and the dust protection. See our DEA Livi 600 6X/M if dust worries you.
What the DEA Livi N names mean
| Name | Meaning |
|---|---|
| 6N | 230V, 600 kg, electromechanical limit switch |
| 6N/M | 230V, 600 kg, magnetic limit switch |
| 9N | 230V, 900 kg, 490 N, 11 cycles an hour |
| 6/24N | 24V, 600 kg, 80 W, 210 N |
| BOOST | High speed, 16 m/min |
| 403N and 803N | Different family, 400 and 800 kg, analog 212E board |
Some seller pages list the 6N with a 212E board. DEA’s catalogue gives the 6N a NET230N board, and keeps the 212E for the 403N and 803N. Check the label on your unit.
DEA Livi 6N or DEA Livi 9N, which pulls harder
| Livi 6N | Livi 9N | |
|---|---|---|
| Maximum gate weight | 600 kg | 900 kg |
| Maximum power | 320 W | 450 W |
| Maximum thrust | 340 N | 490 N |
| Cycles per day, 5 m gate | 60 | 40 |
The bigger motor pulls harder, but DEA allows it fewer cycles a day, not more. Pick the 9N for a heavy gate that opens a few times. Pick the 6N for a lighter gate that opens more often.
DEA Livi 6N sliding gate motor kit specifications
| Model | DEA Livi 6N, code 614700 |
|---|---|
| Maximum gate weight | 600 kg |
| Power supply | 230V AC, 50/60 Hz |
| Maximum power | 320 W |
| Maximum thrust | 340 N |
| Gate speed | 10 m/min |
| Duty on a 5 m gate | 18 cycles per hour, 60 per day |
| Limit switches | Electromechanical |
| Motor control | Encoder with obstacle detection |
| Control unit | NET230N with built in 433 MHz receiver |
| Rack pinion | Z16 |
| Protection rating | IPX4 |
| Operating temperature | Minus 20°C to plus 50°C |
| Weight | 11 kg with packaging |

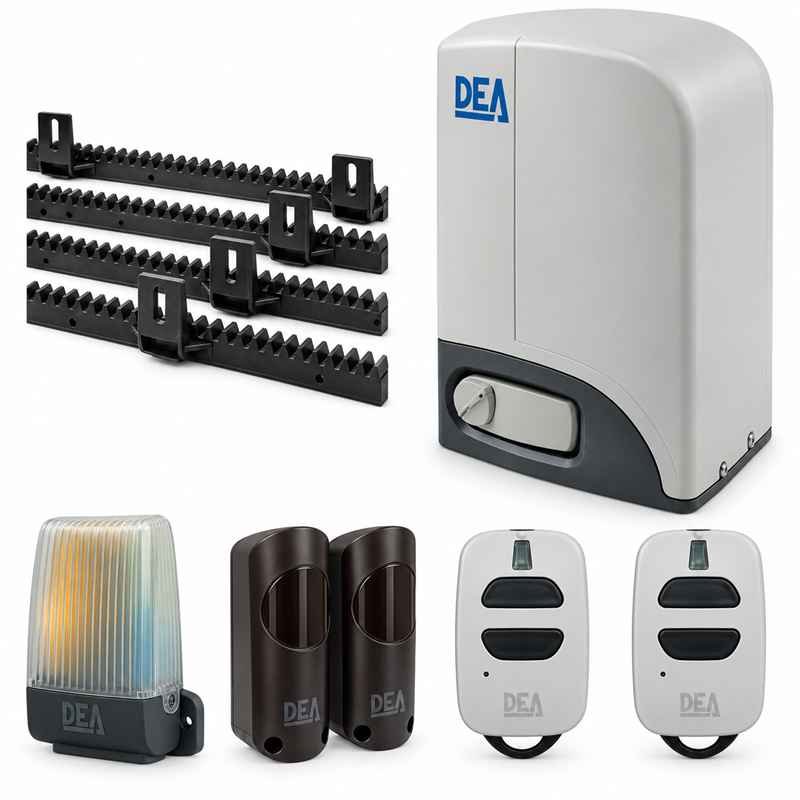

What is included in the DEA Livi 6N kit
- One DEA Livi 6N motor with integrated control unit and receiver
- Two DEA GT2 remote controls
- One pair of DEA Linear photocells
- One flashing light
- One 4 metre nylon rack
- One push button
Quoted separately: foundation concrete, extra rack for a gate longer than 4 metres and installation. See remotes and accessories for more remotes.
Installing a DEA Livi 6N sliding gate motor in Oman
Our engineer checks the track, wheels and balance. We fix the plate, set the rack and wire the photocells. The control board sits raised at the front, which keeps it reachable in narrow spaces. Then we set the force, speed and slowdown, and test the anti crushing sensor. The board also works with DEA’s optional NETBOX and Bluetooth adapter for phone setup.
Sliding gate motor installation for villas across every governorate
We install in Muscat, Sohar, Nizwa, Salalah, Sur, Duqm and every other governorate. See our sliding gate motors, gate spare parts or our installation service. For a busier gate, ask about the Nice Robus 600.
Common questions
How many times a day can the DEA Livi 6N run?
DEA allows 60 cycles in 24 hours and 18 an hour on a 5 metre gate. That is about 30 car trips a day. A busier gate needs a different motor.
Is the DEA Livi 6N protected against dust?
No. It is rated IPX4, which covers splashing water only. The magnetic 6N/M and the 6X/M are rated IP44.
Is the DEA Livi 6N the same as the Livi 6X/M?
Not quite. The power, thrust and daily limit match. The 6N is the earlier series, with an electromechanical limit switch and no dust rating.
What does the DEA Livi 6N kit cost?
OMR 172.000 for the kit with motor, two remotes, photocells, flashing light and 4 metres of rack. Payment is cash on delivery. Installation is quoted separately.
