Heat protection on a 500kg sliding gate motor in Omani summer
The K500 carries a heat probe that temporarily interrupts the cycle when the motor has been working hard, and a maximum operating temperature of plus 55°C.
On a busy compound gate in July, that probe will occasionally stop the gate mid afternoon and let it run again once the motor has cooled. That is the motor protecting itself, not a fault. Owners who do not know this replace working motors.
You will also see “self heated motor for low temperature operation” listed as a feature of this unit. That is real, and it is designed for European winters. In Oman it does nothing for you. The figure at the other end of the range is the one that matters here.
The 60 percent duty cycle is generous for this weight class and suits a gate that opens many times a day.
RIB K500 or K500 FAST, which sliding gate motor speed you need
RIB sells this operator in two speeds. The K500 FAST runs at roughly double the standard speed. A faster gate is not automatically better, a heavier leaf moving faster puts more load on the rack and the pinion, but on a busy entrance where cars queue it makes a real difference.
RIB also builds the same operator at other weights: K400, K500, K800, K1400 to 2200, and SUPER up to 3600 kg. This listing is the K500, rated to 500 kg. Send us your gate weight and we will confirm, or move you up the range from our sliding gate motors, which run from 400 kg to 2,000 kg.
Features of the RIB K500 sliding gate motor
- Irreversible operator, so the gate holds position without a separate lock
- Synthesised steel driving gear
- Adjustable slowdown on approach at both ends of travel
- Pedestrian opening command, opens the gate part way for someone on foot
- Safety strip auto test to EN 12453
- Manual release by personalised key or Allen key
- Adjustable fixing plate, compatible with the RIB K5 footprint
- Heat probe thermal protection
RIB K500 technical specifications
| Model | RIB K500, FAST version also available |
|---|---|
| Type | Irreversible electromechanical operator |
| Power supply | 230V, 50/60 Hz |
| Max gate weight | 500 kg |
| Max thrust | 400 N |
| Max torque | 9.5 Nm |
| Duty cycle | 60 percent guaranteed continuous |
| Operating temperature | Minus 10°C to plus 55°C |
| IP rating | IP54 |
| Noise level | Under 70 dB |
| Thermal protection | Heat probe, interrupts cycle on prolonged use |
| Country of origin | Italy |

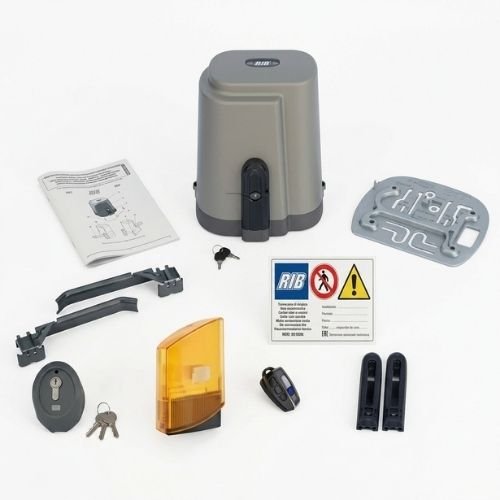

What is in the RIB K500 sliding gate automation kit
- RIB K500 motor with integrated control unit
- Two SUN 2CH two channel remote transmitters
- One pair of FIT SLIM photocells
- One BLOCK key selector
- One SAIL flashing warning light
- One push button
- Four 1 metre nylon rack sections
- Warning plate and manuals
Spare remotes, extra rack and replacement photocells are stocked at the shop. Browse remotes and accessories or gate spare parts.
Check your gate length against the included rack
The kit includes 4 metres of rack, four 1 metre sections. Rack runs the full length of the gate leaf, so a leaf longer than about 4 metres needs additional sections. Measure your leaf and tell us the length before ordering, so the right amount goes out with the motor rather than being discovered short on fitting day.
Villa and compound sliding gate automation in Muscat
- Villa and residential sliding gates
- Compound and gated community entrances
- Commercial premises and warehouse gates
- Light industrial entrances
Sliding gate motor installation across Oman
Our engineer sets the base plate, fits the rack along the leaf, sets the pinion mesh, wires the photocells, key selector and warning light, then programs the force, slowdown and pedestrian opening to suit your gate.
We install in Muscat, Sohar, Nizwa, Salalah, Sur, Duqm and every other governorate, from our shop in Al Khuwair. See the rest of our RIB range, or our gate automation installation service.
Common questions about the RIB K500 in Oman
Why does my gate stop working on hot afternoons?
The K500 has a heat probe that pauses the motor when it has been working hard, then lets it run again once cooled. On a busy gate in an Omani summer this is normal protection, not a fault.
What is the difference between the K500 and the K500 FAST?
The FAST version runs at roughly double the speed. Both handle the same 500 kg. Tell us how busy the entrance is and we will advise which suits.
Is the included rack enough for my gate?
The kit includes 4 metres. A gate leaf longer than that needs extra rack sections, which we stock. Measure your leaf before ordering.
Will it hold my gate closed without a lock?
Yes. It is an irreversible operator, so the gate cannot be pushed open by hand when the motor is engaged.
What is the price?
OMR 190.400 for the complete kit. Installation is quoted separately after we see the gate.
Order the RIB K500 sliding gate motor in Oman
Send your gate weight and leaf length on WhatsApp to +968 75219236, or call the shop on +968 75219236. We are open 9 am to 9 pm every day. We do not take payment online.
