The Beninca BULL 6M is an Italian 230V sliding gate motor kit for gates up to 600 kg. Many seller pages print the wrong power figures for it. They copy the numbers of the larger BULL 8M. Beninca’s own figures are 650 N of thrust and 1.3 A. We stock the complete kit in Al Khuwair for OMR 143.000 and fit it across Oman.
Beninca BULL 6M figures that sellers get wrong
| BULL 6M, this kit | BULL 8M | |
|---|---|---|
| Maximum gate weight | 600 kg | 800 kg |
| Maximum thrust | 650 N | 940 N |
| Current drawn | 1.3 A | 2.6 A |
| Motor weight | 10.9 kg | 13.6 kg |
| Gate speed | 10.5 m/min | 10.5 m/min |
| Duty cycle | 30% | 30% |
Some listings give the 6M 940 N, 2.6 A and 13.6 kg. Those are the BULL 8M figures. The 6M pulls 650 N. Judge a gate by its weight and its push force, not by the biggest number on a listing.
Beninca BULL 6M cycles per hour and duty
Beninca gives the BULL 6M a 30% duty cycle and publishes no cycle count on its product page. Beninca classes it for residential use. A family villa gate suits it. A shared compound, a shop or a staff yard does not. At 10.5 metres a minute, a 5 metre gate takes about 29 seconds to open.
Beninca BULL 6M virtual encoder and safety devices
The BULL 6M has a virtual encoder that senses an obstacle and the gate position. The control unit is built in, with a 230V switching power supply and a receiver. A motor with obstacle sensing still needs safety devices. The kit has photocells. We also check the force at the leading end, and we quote a sensitive edge if the gate needs one.
Beninca BULL 6M magnetic limit switches or the LT version
The standard BULL 6M SE.S uses magnetic limit switches. Beninca also makes the BULL 6MLT SE, with spring limit switches and no encoder. Ask us which one is in the box. The parts for the two are not the same, and the LT does not have the obstacle sensor.
Beninca BULL 6M in Oman heat and dust
The motor works from minus 20°C to plus 50°C and is rated IP44. IP44 covers splashes and objects over 1 mm, but not fine dust. Summer sits at the top of that range, so keep the cover shaded and the track clear of sand. Magnetic limit switches have no moving contacts to clog with sand, which helps in Oman.
Beninca BULL 6M sliding gate motor kit specifications
| Model | Beninca BULL 6M |
|---|---|
| Maximum gate weight | 600 kg |
| Power supply | 230V AC, 50 to 60 Hz |
| Current drawn | 1.3 A |
| Maximum thrust | 650 N |
| Gate speed | 10.5 m/min |
| Duty cycle | 30% |
| Limit switches | Magnetic |
| Obstacle detection | Virtual encoder |
| Control unit | Built in, with receiver |
| Remote frequency | 433.92 MHz rolling code, up to 64 remotes |
| Rack pinion | Module 4, 18 teeth |
| Protection rating | IP44 |
| Operating temperature | Minus 20°C to plus 50°C |
| Motor weight | 10.9 kg |

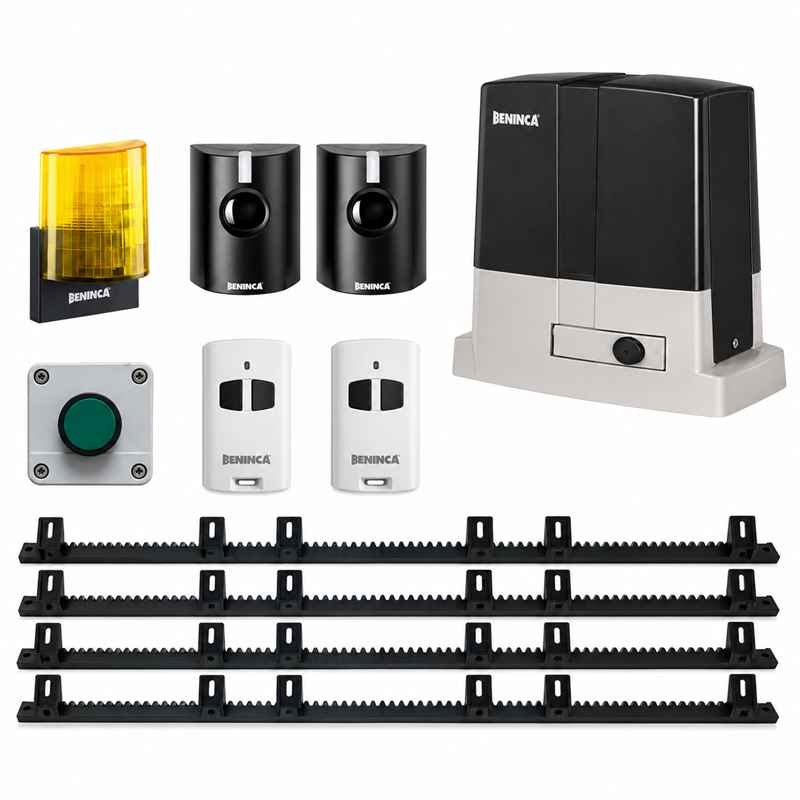

What is included in the Beninca BULL 6M kit
- One Beninca BULL 6M motor with built in control unit
- Two Beninca remote controls
- One pair of outdoor photocells
- One flashing light
- Four nylon racks, one metre each
- One push button
Quoted separately: foundation concrete, a sensitive edge, extra rack for a gate longer than 4 metres and installation. See remotes and accessories for more remotes. For a gate near 600 kg we quote steel rack, so tell us the weight.
Installing a Beninca BULL 6M sliding gate motor in Oman
Our engineer checks the track, wheels and balance. The gate needs a mechanical stopper at each end. We cast the foundation plate level, set the rack clear of the pinion and fit the magnets. Then we wire the photocells and set the obstacle sensor. The key release opens the gate by hand in a power cut. Tell us your gate weight and length on WhatsApp first. We will confirm the 6M suits it before you pay.
Sliding gate motor installation for villas across every governorate
We install in Muscat, Sohar, Nizwa, Salalah, Sur, Duqm and every other governorate. See our sliding gate motors, gate spare parts or our installation service. For a lighter gate, see the Beninca BULL 5M. For a heavier one, see the Beninca BULL 624SW.
Common questions
What is the real thrust of the Beninca BULL 6M?
Beninca lists 650 N and 1.3 A. Some listings print 940 N and 2.6 A, which are the BULL 8M figures.
What gate weight does the Beninca BULL 6M take?
Up to 600 kg. For a gate up to 800 kg, Beninca makes the BULL 8M.
Does the Beninca BULL 6M have obstacle detection?
Yes, through a virtual encoder. The BULL 6MLT version has no encoder. We also fit photocells and quote a sensitive edge if needed.
What does the Beninca BULL 6M kit cost?
OMR 143.000 for the kit with motor, two remotes, photocells, flashing light and 4 metres of rack. Payment is cash on delivery. Installation is quoted separately.
Order the Beninca BULL 6M in Oman
Send your gate weight, length and a photo of the track on WhatsApp to +968 75219236. You can also call +968 75219236. Visit us at Shop No 176, Way Street No 57, Block No 17/2, Al Khuwair, Muscat, Oman. We are open 9 am to 9 pm every day. Email contact@falajtech.com.
