Check your gate length against the included rack
This kit includes 4 nylon rack sections. Standard nylon gate rack is supplied in 1 metre lengths with dovetail joints, so the kit gives you approximately 4 metres of rack.
That comfortably covers most single leaf villa gates. If your gate leaf is longer than around 3.5 to 4 metres, you will need extra rack sections, which we stock separately. Measure your gate leaf before ordering and tell us the length, so we can confirm whether the kit rack is enough or whether to add pieces to your order.
Built for intensive use, which matters in Omani heat
This motor is rated intensive use, meaning it is built to run through many cycles without the rest periods a lighter duty motor needs.
For a compound or shared entrance gate opening dozens of times a day, that rating is the difference between a motor that keeps pace and one that overheats by afternoon. For a quiet villa gate opening a handful of times a day, a lighter motor would do the same job, but there is no downside to having more than you need here.
Specifications
| Control unit power supply | 115/230V AC, 50 to 60 Hz |
|---|---|
| Motor supply | 24V DC |
| Maximum gate weight | 600 kg |
| Maximum thrust | 715 N |
| Opening speed | 5.5 to 11 metres per minute |
| Duty cycle | Intensive use |
| IP rating | IP44 |
| Operating temperature | Minus 20°C to plus 50°C |
| Pinion type | M4 Z14 |
| Country of origin | Italy |
The control board includes a virtual encoder for smooth slowdown at each end of travel, automatic torque adjustment through the STC system, and amperometric anti crushing detection that stops the gate if it meets an obstacle. It is also KNX and MQTT ready for anyone integrating it with a smart home system.
What is included

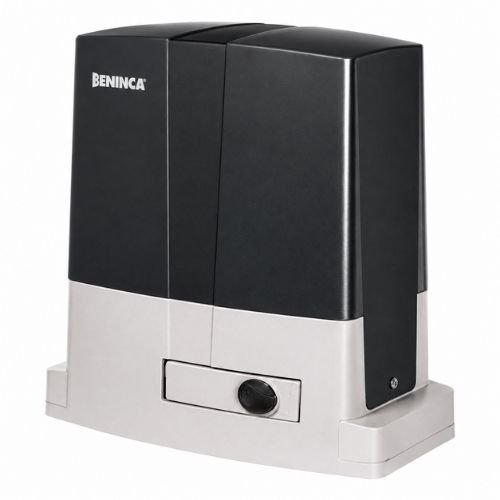

- Beninca BULL624SW 24V DC gear motor
- Adjustable photocell pair
- Flashing warning light
- Two channel remote control
- 4 nylon rack sections
- Push button
Quoted separately: additional rack for gates longer than the kit covers, installation, and a key switch or keypad if you want one.
Installation
Our engineer fits the rack along the gate leaf, mounts the motor to a concrete or steel base plate, sets the pinion mesh, wires the photocells and flashing light, and programs the control board’s torque and slowdown settings for your specific gate weight.
We install across all eleven governorates from our shop in Al Khuwair.
Common questions
Is the included rack enough for my gate?
The kit includes approximately 4 metres of rack. If your gate leaf is longer, you will need extra sections, which we stock. Measure your gate and tell us the length before ordering.
What does intensive use mean?
It means the motor is built to run through many open and close cycles without needing rest periods, which suits a busy compound gate better than a light duty motor would.
Does it work with a smart home system?
Yes, it is KNX and MQTT ready with the appropriate interface, for anyone integrating gate control into a wider home automation system.
What happens if the power goes off?
The gate can be released manually with the supplied key. A battery backup can also be added so the gate keeps working during a power cut.
Ask before you buy
We do not take payment online. Send your gate weight and leaf length on WhatsApp to +968 75219236, or call the shop on +968 75219236. We are open 9 am to 9 pm every day.
