The Life ACER 2000 kg (model AC20RM DL2) is an Italian 230V sliding gate motor. It takes gates up to 2000 kg. It is the heaviest motor in the ACER range, but not the hardest working. Life rates it for 40% intermittent duty, below the 1500 kg model. We stock the complete kit in Al Khuwair for OMR 264.000 and fit it across Oman.
Life ACER 2000 kg: the heaviest motor is not the hardest working
| AC12R | AC15RM | AC20RM | |
|---|---|---|---|
| Maximum gate weight | 1200 kg | 1500 kg | 2000 kg |
| Thrust | 1200 N | 1500 N | 1800 N |
| Intermittent duty | 35% | 50% | 40% |
| Longest working time | 10 min | 20 min | 15 min |
Life’s manual gives the AC20RM more thrust but a lower duty rating than the AC15RM. A gate that moves all day, such as a factory yard, needs a conversation before you order. For a gate above 2000 kg, ask us about the CAME BY 3500T.
Life ACER 2000 kg speed and gate travel time
The AC20RM moves the gate at 8 metres a minute, about 0.13 m/s. That is about 45 seconds for a 6 metre gate and 75 seconds for a 10 metre gate. Some seller pages say 10 metres a minute. Life’s manual gives 10 only for the smallest model, the AC4R.
The encoder slows the gate at each end of travel, with five slowdown levels to choose from.
Magnetic limit switches and the IP55 rating
The M in AC20RM stands for magnetic limit switches. Life rates the magnetic version IP55, and the electromechanical R versions IP44. A magnetic switch has no contact to wear or clog with sand. IP55 adds dust protection and resistance to water jets. The AC20RM also runs on oil lubrication rather than grease.
Life ACER AC20RM DL2 specifications for a 2000 kg sliding gate motor
| Model | Life ACER AC20RM DL2, kit reference SETUP AC20RM DL2 042 |
|---|---|
| Maximum gate weight | 2000 kg |
| Power supply | 230V AC, 50/60 Hz |
| Motor power and current | 450 W, 1.8 A |
| Thrust and starting torque | 1800 N, 80 Nm |
| Gate speed | 8 m/min |
| Intermittent duty | 40%, longest working time 15 minutes |
| Lubrication | Oil |
| Limit switches | Magnetic |
| Protection rating | IP55 |
| Control unit | RG1R DL2, integrated, with encoder |
| Operating temperature | Minus 20°C to plus 70°C |
| Dimensions and weight | 342 x 183 x 288 mm, 15 kg |
| Country of origin | Italy |
Anchor plate and rack for a 2000 kg gate
Life requires the anchor plate to be set in concrete for any gate over 300 kg. Expansion plugs alone are not enough. The rack sits with 1 mm of play at the pinion.
The kit includes nylon rack. At this weight we quote steel rack instead. Tell us the gate weight and length, and send a photo of any rack already fitted.
Which Life ACER model suits your gate in Oman
The number in the model name is the maximum gate weight in kilograms.
| Model | Maximum weight | Thrust | Duty |
|---|---|---|---|
| AC4R DL | 400 kg | 500 N | 35% |
| AC6R DL | 600 kg | 700 N | 35% |
| AC8R DL | 800 kg | 900 N | 35% |
| AC12R DL | 1200 kg | 1200 N | 35% |
| AC15RM DL | 1500 kg | 1500 N | 50% |
| AC20RM DL2 | 2000 kg | 1800 N | 40% |

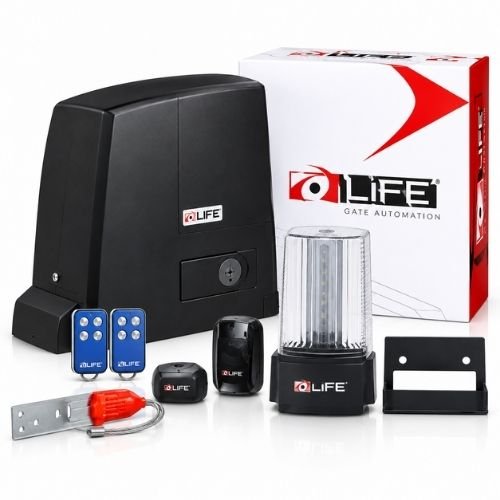

What is included in the Life ACER 2000 kg kit
- Life ACER AC20RM DL2 motor with integrated control unit
- Two Life MAXI2 433.92 MHz rolling code remote controls
- One pair of Life VISIO outdoor photocells
- Life SUN LED flashing light
- Four nylon racks, one metre each
- Push button and motor fixing plate
Quoted separately: installation, foundation concrete, steel or extra rack and more remotes and accessories. A gate longer than 4 metres needs more rack than the kit holds.
Installing a Life ACER 2000 kg sliding gate motor in Oman
Our engineer checks the gate weight and rack, then sets the anchor plate in concrete. We fit the rack, set the limit brackets and wire the photocells and flashing light. The gate runs on 2 to 3 cm past each limit. We set the brackets to keep it clear of the stops.
Then we set the slowdowns and obstacle sensitivity, and test to EN 12445 as Life requires. Life asks for a professional test every 6 months.
Heavy sliding gate motor installation for compounds and industrial gates across every governorate
We install in Muscat, Sohar, Nizwa, Salalah, Sur, Duqm and every other governorate. See the Life range, our sliding gate motors, gate spare parts or our installation service.
Common questions
Can the Life ACER 2000 kg move a 2000 kg gate?
Yes, up to 2000 kg. Weigh the gate leaf rather than guess, and tell us how often it runs. The duty rating is 40%.
Is the Life ACER AC20RM better than the AC15RM?
Only for a heavier gate. It has more thrust, 1800 N against 1500 N, but a lower duty rating, 40% against 50%.
How fast does the Life ACER 2000 kg move a gate?
About 8 metres a minute. A 10 metre gate takes about 75 seconds to open. Life’s manual gives this speed for the AC20RM.
What does the Life ACER 2000 kg kit cost?
OMR 264.000 for the kit with motor, photocells, two remotes, flashing light and 4 metres of rack. Payment is cash on delivery. Installation is quoted separately.
