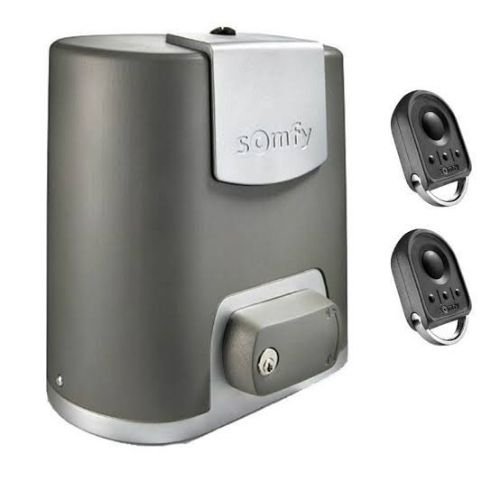

The Somfy Elixo 500 3S RTS is a French sliding gate motor pack for gates up to 500 kg. Somfy rates it for 30 manoeuvres a day, which suits one household and nothing busier. The pack includes a back up battery, photocells, a flashing light and two remotes. We stock it in Al Khuwair for OMR 140.000 and fit it across Oman.
Somfy Elixo 500 3S RTS limits: 500 kg and 30 manoeuvres a day
Somfy’s installation guide sets the area of application as sliding gates up to 500 kg and 30 manoeuvres a day. That is a light duty figure. A family villa fits comfortably. A shared entrance, a shop gate or a staff car park does not.
Seller pages call this motor a residential model and stop there. The 30 manoeuvre figure is the number to check against how your gate is really used.
Elixo 500 3S RTS or Elixo 500 230V, the duty difference
| Elixo 500 3S RTS | Elixo 500 230V RTS | |
|---|---|---|
| Maximum gate weight | 500 kg | 500 kg |
| Manoeuvres per day | 30 | 100 |
Somfy sells two Elixo 500 motors with the same weight rating. The plain 230V version is rated for 100 operations a day, against 30 for the 3S. This page is the 3S. If your gate is busy, ask us before you order.
Somfy Elixo 500 3S RTS back up battery for power cuts
The pack includes a 9.6V back up battery. Somfy lists it at 5 to 10 cycles over 24 hours, depending on the gate. The charge time is 48 hours. The manual release key also moves the gate by hand.
Rubber safety block at the end of the gate
Somfy requires a passive rubber block on the leading end of the gate. Reference 9014597 is for gates up to 300 kg. Reference 9014598 is for 300 to 500 kg. The pack does not include one, so we quote it with the installation.
Somfy Elixo 500 3S RTS in Oman heat, dust and salt air
Somfy lists this motor for use from minus 20°C to plus 60°C, and rates it IP44. IP44 covers splashes and objects over 1 mm, but not fine dust. On the coast, wipe salt off the cover. In dusty areas, keep the rail and the rack clear.
Somfy RTS or io, which remote works
This motor uses Somfy RTS radio on 433.42 MHz and remembers 40 channels. Somfy io remotes use a different frequency, 868 to 870 MHz, and will not work with it. If you already own Somfy RTS remotes, they can be added. Tell us the remote model.
Somfy Elixo 500 3S RTS sliding gate motor specifications
| Model | Somfy Elixo 500 3S RTS, reference 1216364 |
|---|---|
| Maximum gate weight | 500 kg |
| Manoeuvres per day | 30 |
| Motor | 24V, on a 230V 50 Hz supply |
| Power | 7.5 W standby, 600 W maximum with 500 W light |
| Radio | Somfy RTS 433.42 MHz, 40 channels |
| Limit switch | Electromechanical |
| Gate speed | Programmable, 10 opening speeds |
| Automatic closing | Programmable, 0 to 255 minutes |
| Back up battery input | 9.6V or 24V pack |
| Accessory supply | 24V, 1.2 A |
| Protection rating | IP44 |
| Display | 3 character screen, 7 buttons |
What is included in the Somfy Elixo 500 3S RTS pack
- One Somfy Elixo 500 3S RTS motor with control unit
- Two Somfy Keygo RTS remote controls
- One pair of Somfy Master Pro photocells
- One Somfy Master Pro flashing light with RTS antenna
- One 9.6V back up battery
- Ground fixing kit and manual release handle
Quoted separately: the rack, which Somfy does not include, plus the rubber block, installation and foundation concrete. Send a photo of any rack already fitted. See remotes and accessories for spares.
Installing a Somfy Elixo 500 3S RTS sliding gate motor in Oman
Somfy asks for a straight, level rail and wheels that carry the gate. It also wants end stops on the ground at both ends. Our engineer checks all three first. We measure the gate force to EN 12445 as Somfy requires.
Then we fix the motor, set the rack about 2 mm clear of the pinion and fit the limit brackets. Auto programming runs two full open and close cycles to learn the speed, the torque and the slowdown zones.
Sliding gate motor installation for villas and homes across every governorate
We install in Muscat, Sohar, Nizwa, Salalah, Sur, Duqm and every other governorate. See our sliding gate motors, the Somfy range, gate spare parts or our installation service. For a busier gate, ask about the Nice Robus 600.
Common questions
How many times a day can the Somfy Elixo 500 3S RTS run?
Somfy rates it for 30 manoeuvres a day on gates up to 500 kg. That suits one household. A busier gate needs a different motor.
Does the Somfy Elixo 500 3S RTS work in a power cut?
Yes, for a limited time. The included back up battery gives 5 to 10 cycles over 24 hours, depending on the gate. The manual release moves the gate by hand.
Will my Somfy io remote work with the Elixo 500 3S RTS?
No. This motor uses Somfy RTS radio on 433.42 MHz. io remotes use 868 to 870 MHz. Somfy RTS remotes can be added.
What does the Somfy Elixo 500 3S RTS pack cost?
OMR 140.000 for the pack with motor, photocells, flashing light, back up battery and two remotes. The rack is quoted separately. Payment is cash on delivery.
Order the Somfy Elixo 500 3S RTS in Oman
Send your gate weight, length and a photo of the rack on WhatsApp to +968 75219236. You can also call +968 75219236. Visit us at Shop No 176, Way Street No 57, Block No 17/2, Al Khuwair, Muscat, Oman. We are open 9 am to 9 pm every day. Email contact@falajtech.com.
