The number after the slash is a model code, not the gate weight
This is the point that catches people out on Roger’s H30 range. H30/645 is rated for 600 kg. H30/640 is rated for 640 kg. The higher model number carries the lower weight rating.
| Model | Rated for |
|---|---|
| H30/640 | 640 kg |
| KIT H30/645 | 600 kg |
| KIT H30/646 | 600 kg |
You will also see this unit listed simply as “Roger 600 kg” in some places, which is the weight rather than the model. If you are cross checking a manual, a spare part or another quote, match the full model code and not the number alone. Roger also builds a parallel BH30 brushless series at similar numbers, which is a different line again.
Kit or motor only, check what you are buying
Roger sells the KIT H30/645 and the bare H30/645 as separate products. The KIT ships with remotes, photocells, a blinker and rack. The bare motor ships on its own.
This listing is the complete kit, so everything below is in the box. If you are comparing a cheaper price elsewhere, check which of the two it is before you decide.
Keep the track clear, this motor works by rolling resistance
The stated maximum thrust is 300 N. Thrust on a sliding gate is about overcoming rolling resistance rather than lifting weight, so the figure is not comparable to a swing motor and a lower number is not automatically a weakness.
What it does mean is that the gate needs to run freely. In Oman the bottom track fills with blown sand, and sand in the track raises rolling resistance, which makes the motor pull harder, which raises current and heat. Sweep the track and check the wheels turn freely a few times a year and this motor will do its job for a long time. Neglect it and any motor in this class will struggle.
Roger H30/645 features
- Irreversible operator, so the gate holds position without a separate lock
- H70/104AC control unit built into the motor, not a separate box on the wall
- Optical encoder for accurate position monitoring, obstacle detection and fine adjustment
- Mechanical limit switches
- Motor thermal protection at 150°C
- Fixing plate with tie rods supplied
- Weather resistant outdoor construction
Roger H30/645 technical specifications
| Model | KIT H30/645 |
|---|---|
| Type | Irreversible electromechanical operator |
| Max gate weight | 600 kg |
| Power supply | 230V AC, 50 Hz |
| Power rating | 240 W |
| Max thrust | 300 N |
| Speed | 9.5 m per minute, 0.16 m/s |
| Duty cycle | 50 percent |
| Operating temperature | Minus 20°C to plus 55°C |
| IP rating | IP44 |
| Thermal protection | 150°C |
| Capacitor | 12.5 µF |
| Control unit | H70/104AC, built in |
| Encoder | Optical |
| Pinion | Z15, module 4 |
| Dimensions | 315 x 165.8 x 329 mm |
| Weight | 12.1 kg |
| Country of origin | Italy |

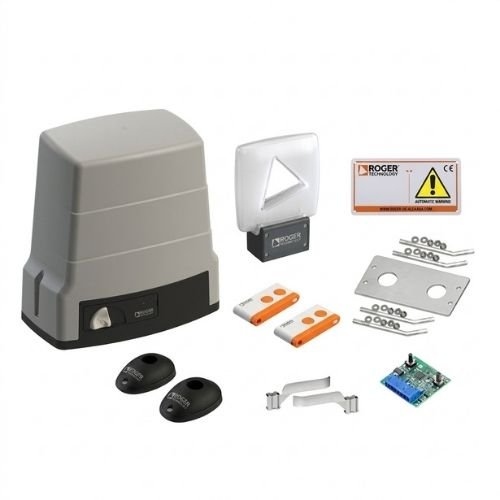

What is in the Roger H30/645 kit
- Roger H30/645 motor with H70 control unit built in
- Two Roger E80 remote controls
- One pair of Roger R90 photocells
- One Roger flashing warning light
- Four 1 metre nylon rack sections
- One push button
- One fixing plate
Spare remotes, photocells and extra rack are stocked. See remotes and accessories and gate spare parts.
Check your gate length against the included rack
The kit includes 4 metres of rack. Rack runs the full length of the gate leaf, so a leaf longer than about 4 metres needs additional sections. Measure your leaf and send us the figure before ordering so the right amount goes out with the motor.
Villa and compound sliding gate automation in Muscat
- Villa and residential sliding gates
- Compound and gated community entrances
- Commercial premises and warehouse gates
- Light industrial entrances
Sliding gate motor installation across Oman
Our engineer sets the fixing plate, fits the rack along the leaf, sets the pinion mesh, wires the photocells and warning light, then programs the force, slowdown and encoder limits to suit your gate.
We install in Muscat, Sohar, Nizwa, Salalah, Sur, Duqm and every other governorate, from our shop in Al Khuwair. See the full Roger range, our sliding gate motors from 400 kg to 2,000 kg, or our gate automation installation service.
Common questions about the Roger H30 in Oman
Does the 645 in the model name mean the gate weight?
No. It is a model code. The H30/645 is rated for 600 kg, while the H30/640 is rated for 640 kg. Match the full model code, not the number.
Is this the kit or the motor only?
This is the complete kit, with two remotes, a photocell pair, a warning light, a push button, a fixing plate and 4 metres of rack. Roger sells the bare motor separately.
What does the optical encoder do?
It tracks the gate’s exact position, which lets the control unit detect an obstacle and slow the gate smoothly at each end of travel rather than stopping abruptly.
Is the included rack enough for my gate?
The kit includes 4 metres. A gate leaf longer than that needs extra rack sections, which we stock. Measure your leaf before ordering.
What is the price?
OMR 209.340 for the complete kit. Installation is quoted separately after we see the gate.
Order the Roger H30/645 sliding gate motor in Oman
Send your gate weight and leaf length on WhatsApp to +968 75219236, or call the shop on +968 75219236. We are open 9 am to 9 pm every day. We do not take payment online.
