The Beninca BULL 8M is an Italian 230V sliding gate motor kit for gates up to 800 kg. It is the strongest motor in Beninca’s BULL M range. It pulls 940 N and draws 2.6 A. It also has a virtual encoder and a control unit with a display. We stock the complete kit in Al Khuwair for OMR 232.000 and fit it across Oman.
Beninca BULL 8M or BULL 6M, which gate weight fits
| BULL 8M, this kit | BULL 6M | |
|---|---|---|
| Maximum gate weight | 800 kg | 600 kg |
| Maximum thrust | 940 N | 650 N |
| Current drawn | 2.6 A | 1.3 A |
| Motor weight | 13.6 kg | 10.9 kg |
| Gate speed | 10.5 m/min | 10.5 m/min |
| Duty cycle | 30% | 30% |
Speed and duty cycle are the same. The 8M adds thrust and weight capacity. Choose it when the gate is heavy, or when the push force on the track is high. Choose the 6M for a lighter gate that opens a few times an hour.
Beninca BULL 8M duty cycle and daily use
Beninca gives the BULL 8M a 30% duty cycle and publishes no cycle count on its product page. Each time a car leaves and returns, the gate does two cycles. At 10.5 metres a minute, a 5 metre gate takes about 29 seconds to open. A large villa fits well. A busy shared entrance needs a talk with us first. Tell us how many cars use the gate on a normal day. We will say if the 8M suits that, or if a heavier motor is the safer choice.
Beninca BULL 8M virtual encoder and control unit
The BULL 8M has a virtual encoder that senses an obstacle and the gate position. The control unit is the CP.BULL8 OM, with an LCD display and a receiver for 64 remotes. A motor with obstacle sensing still needs safety devices. The kit has photocells. We also check the force at the leading end, and we quote a sensitive edge for an 800 kg gate.
Beninca BULL 8M in Oman heat and dust
The motor works from minus 20°C to plus 50°C and is rated IP44. IP44 covers splashes and objects over 1 mm, but not fine dust. Summer sits at the top of that range, so keep the cover shaded and the track clear of sand. Magnetic limit switches have no moving contacts to clog with sand, which helps in Oman.
Beninca BULL 8M sliding gate motor kit specifications
| Model | Beninca BULL 8M |
|---|---|
| Maximum gate weight | 800 kg |
| Power supply | 230V AC, 50 to 60 Hz |
| Current drawn | 2.6 A |
| Maximum thrust | 940 N |
| Gate speed | 10.5 m/min |
| Duty cycle | 30% |
| Limit switches | Magnetic |
| Obstacle detection | Virtual encoder |
| Control unit | CP.BULL8 OM with LCD display |
| Remote frequency | 433.92 MHz, up to 64 remotes |
| Rack pinion | Module 4, 18 teeth |
| Protection rating | IP44 |
| Operating temperature | Minus 20°C to plus 50°C |
| Motor weight | 13.6 kg |
| Foundation plate | Reinforced, 326 x 164.5 x 2 mm |

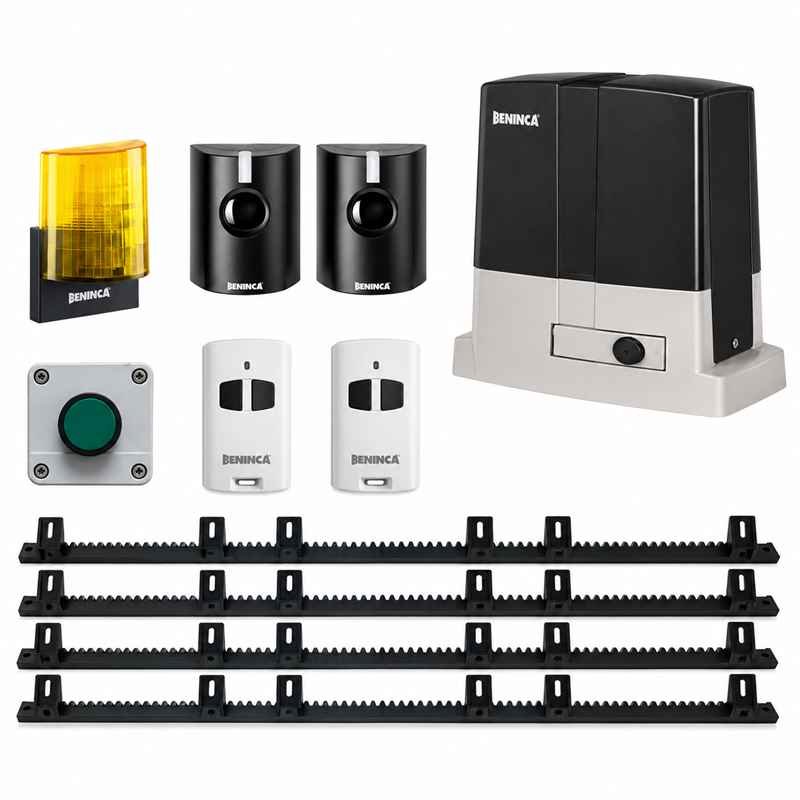

What is included in the Beninca BULL 8M kit
- One Beninca BULL 8M motor with built in control unit
- One reinforced foundation plate
- Two Beninca remote controls
- One pair of outdoor photocells
- One flashing light
- Four nylon racks, one metre each
- One push button
Quoted separately: foundation concrete, a sensitive edge, extra rack for a gate longer than 4 metres and installation. See remotes and accessories for more remotes. For an 800 kg gate we quote steel rack rather than nylon, so tell us the weight.
Installing a Beninca BULL 8M sliding gate motor in Oman
Our engineer checks the track, wheels and balance. A heavy gate must stay put when stopped halfway, and it needs a mechanical stopper at each end. We cast the foundation plate level, set the rack clear of the pinion and fit the magnets. Then we wire the photocells and set the obstacle sensor. The key release opens the gate by hand in a power cut. Tell us your gate weight and length on WhatsApp first. We will confirm the 8M suits it before you pay.
Sliding gate motor installation for large villas across every governorate
We install in Muscat, Sohar, Nizwa, Salalah, Sur, Duqm and every other governorate. See our sliding gate motors, gate spare parts or our installation service. For a lighter gate, see the Beninca BULL 6M or the Beninca BULL 5M.
Common questions
What gate weight does the Beninca BULL 8M take?
Up to 800 kg. For a lighter gate, the BULL 6M takes 600 kg and the BULL 5M takes 500 kg.
How strong is the Beninca BULL 8M?
Beninca lists 940 N of thrust and 2.6 A. That is more than the BULL 6M, which pulls 650 N.
Does the Beninca BULL 8M have obstacle detection?
Yes, through a virtual encoder. We also fit photocells, and we quote a sensitive edge for an 800 kg gate.
What does the Beninca BULL 8M kit cost?
OMR 232.000 for the kit with motor, two remotes, photocells, flashing light and 4 metres of rack. Payment is cash on delivery. Installation is quoted separately.
Order the Beninca BULL 8M in Oman
Send your gate weight, length and a photo of the track on WhatsApp to +968 75219236. You can also call +968 75219236. Visit us at Shop No 176, Way Street No 57, Block No 17/2, Al Khuwair, Muscat, Oman. We are open 9 am to 9 pm every day. Email contact@falajtech.com.
