The DEA Livi 803N is an Italian 230V sliding gate motor kit for gates up to 800 kg. Some seller pages call it a 900 kg motor. It is not. DEA rates it for 800 kg, and for 40 openings a day on a 5 metre gate. We stock the complete kit in Al Khuwair for OMR 230.000 and fit it across Oman.
DEA Livi 803N is an 800 kg motor, not a 900 kg motor
The kit code 615702 is the DEA Livi 803N. DEA’s catalogue rates it at 800 kg. The 900 kg model is the Livi 9N, code 615700, which is a different motor with a different control board.
| Livi 803N, this kit | Livi 9N | |
|---|---|---|
| Maximum gate weight | 800 kg | 900 kg |
| Control unit | 212E, analog | NET230N |
| Encoder and obstacle detection | Not listed | Yes |
| Maximum thrust | 490 N | 490 N |
| Cycles per day, 5 m gate | 40 | 40 |
Some seller pages also print the board as 202E. DEA’s board is the 212E. Check the label on your unit before you order parts.
DEA Livi 803N daily limit: 40 cycles on a 5 metre gate
| Gate | DEA limit |
|---|---|
| Cycles per hour, 5 m gate | 11 |
| Cycles in 24 hours, 5 m gate | 40 |
| Motor thermal cut out | 160°C |
Each time a car leaves and returns, the gate does two cycles. So 40 cycles is about 20 car trips a day. A large villa gate sits inside that. A shared compound or a staff yard does not. The motor moves the gate at 10 metres a minute. A 5 metre gate takes about 30 seconds to open.
Safety devices on the DEA Livi 803N
The 212E board is analog. DEA lists force adjustment, working time learning and an input for external safety devices. It lists no encoder and no built in obstacle detection. DEA says to meet the EN 12453 impact limits, you must fit external safety devices that meet EN 12978. The kit has photocells. We also quote a sensitive edge for the gate’s leading end. The price is clear before we start.
DEA Livi 803N is rated IPX4, with no dust rating
DEA lists the Livi N range as IPX4. The X means the motor is not rated for dust at all. Oman has plenty of sand, so keep the cover on, the track clear and the rack clean. The motor works from minus 20°C to plus 50°C, and summer sits at the top of that range.
DEA Livi 803N sliding gate motor kit specifications
| Model | DEA Livi 803N, code 615702 |
|---|---|
| Maximum gate weight | 800 kg |
| Power supply | 230V AC, 50/60 Hz |
| Maximum power | 450 W |
| Maximum thrust | 490 N |
| Gate speed | 10 m/min |
| Duty on a 5 m gate | 11 cycles per hour, 40 per day |
| Limit switches | Electromechanical |
| Control unit | 212E with built in 433 MHz receiver |
| Rack pinion | Z16 |
| Protection rating | IPX4 |
| Operating temperature | Minus 20°C to plus 50°C |
| Weight | 12.5 kg with packaging |

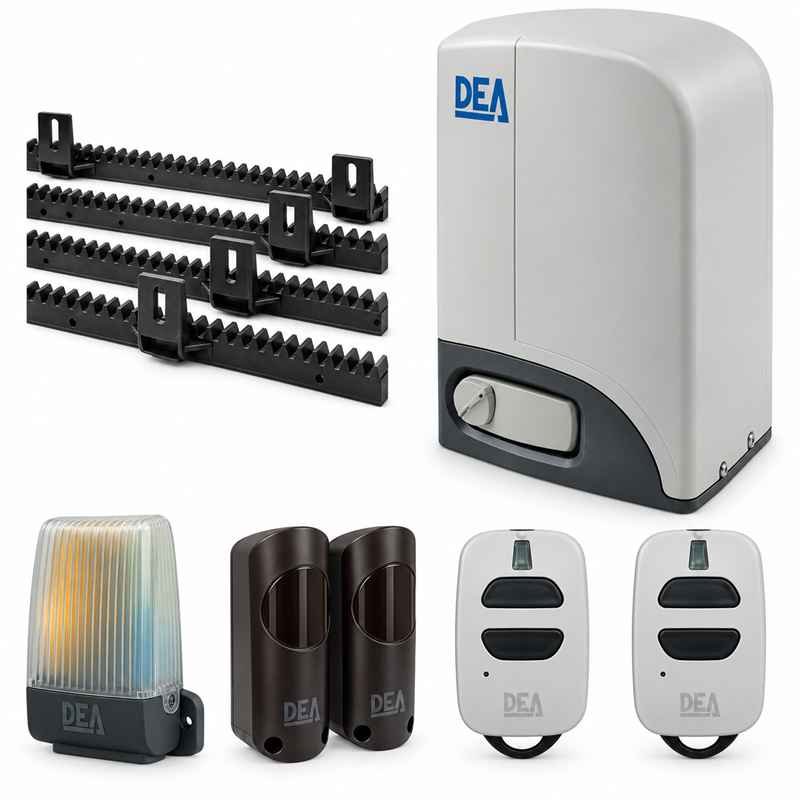

What is included in the DEA Livi 803N kit
- One DEA Livi 803N motor with integrated 212E control unit and receiver
- Two DEA GT2 remote controls
- One pair of DEA Linear photocells
- One flashing light
- One 4 metre nylon rack
- One push button
Quoted separately: foundation concrete, a sensitive edge, extra rack for a gate longer than 4 metres and installation. See remotes and accessories for more remotes. For an 800 kg gate we quote steel rack rather than nylon, so tell us the gate weight.
Installing a DEA Livi 803N sliding gate motor in Oman
Our engineer checks the track, wheels and balance. A heavy gate must stay put when stopped halfway. We fix the plate, set the rack 1 to 2 mm clear of the pinion and wire the photocells. Then we set the force and let the board learn the working time. DEA asks for a check of the cover, the screws and the release lever every 6 months.
Sliding gate motor installation for large villas across every governorate
We install in Muscat, Sohar, Nizwa, Salalah, Sur, Duqm and every other governorate. See our sliding gate motors, gate spare parts or our installation service. For a lighter gate, see the DEA Livi 6N.
Common questions
Is the DEA Livi 803N a 900 kg motor?
No. DEA rates the 803N for 800 kg. The 900 kg motor is the Livi 9N, which has a different board.
How many times a day can the DEA Livi 803N run?
DEA allows 40 cycles in 24 hours and 11 an hour on a 5 metre gate. That is about 20 car trips a day. A busier gate needs a different motor.
Does the DEA Livi 803N need a safety edge?
DEA asks for external safety devices to meet EN 12453, and lists no built in obstacle detection. The kit has photocells. We quote a sensitive edge with the installation.
What does the DEA Livi 803N kit cost?
OMR 230.000 for the kit with motor, two remotes, photocells, flashing light and 4 metres of rack. Payment is cash on delivery. Installation is quoted separately.
