Confirm your garage is fully enclosed before ordering
LiftMaster’s own guidance for this region states the LM80EV is not suited to a garage with an open roof structure, meaning a carport or garage where the space above the door and its rail is not fully covered.
This is not a claim we are making up, it comes directly from LiftMaster’s own regional documentation. If your garage is a fully enclosed room with a solid roof over the whole door and rail, this unit is well suited. If your garage is more open to the sky above the track, tell us before ordering and we will advise on a better fit.
The model name refers to thrust, not door weight
The “80” in LM80EV tracks its 800 N pulling force, not the weight of door it lifts. The actual maximum door weight is 130 kg. It is easy to assume the two numbers are the same thing, and they are not.
LiftMaster also sells this motor under closely related suffixes, LM80EVF and LM80EVX, in other markets. This listing is the standard LM80EV. If you are ever matching a manual or a spare part against your unit, check the full suffix on the rating label rather than just “LM80”.
Specifications
| Motor | 24V DC, permanent lubrication |
|---|---|
| Input power | 220 to 240V AC, 50 to 60Hz |
| Max pull force | 800 N |
| Max door weight | 130 kg |
| Opening speed | 200 mm per second |
| Rail type | Belt drive, one piece rail |
| Radio frequency | 433.92 MHz and 868 MHz |
| Rolling code | Security+ 2.0 |
| Remote memory | Up to 180 registers |
| Standby power | Under 1 Watt |
| Warranty | 2 years |
Smart home control with myQ
This opener supports LiftMaster’s myQ app, letting you check and control the door from a phone. myQ needs an additional gateway and safety beams to work, neither of which is included in this listing, and we quote both separately if you want the smart home feature active.
What is included

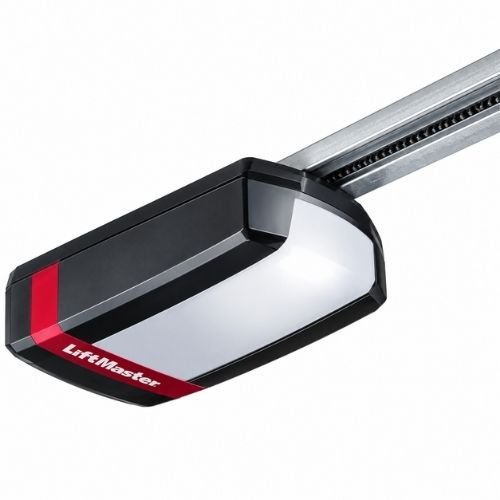

- LiftMaster LM80EV opener unit
- One piece rail system
- Two ME960-LM remote transmitters
- One 128EV wireless wall control
- Installation accessories
Quoted separately: the myQ gateway and safety beams, and installation.
Installation
Our engineer confirms your garage structure before fitting, mounts the rail and motor to the ceiling above your sectional or up and over door, connects the drive arm, and programs the remotes and wall control.
We install across all eleven governorates from our shop in Al Khuwair.
Common questions
Will this work with my garage?
Only if your garage has a fully enclosed roof over the door and its full rail length. LiftMaster’s own guidance excludes open roof garages for this model. Tell us your garage structure before ordering.
What does the 80 in the name mean?
It refers to 800 N of pulling force, not the door weight. This unit is actually rated to 130 kg.
Does it work with smart home apps?
Yes, through myQ, but you need an additional gateway and safety beams, which we quote separately.
What is the price?
OMR 136.040 for the opener unit.
Ask before you buy
We do not take payment online. Tell us whether your garage has a fully enclosed roof on WhatsApp to +968 75219236, or call the shop on +968 75219236. We are open 9 am to 9 pm every day.
